HX-170-400（380）

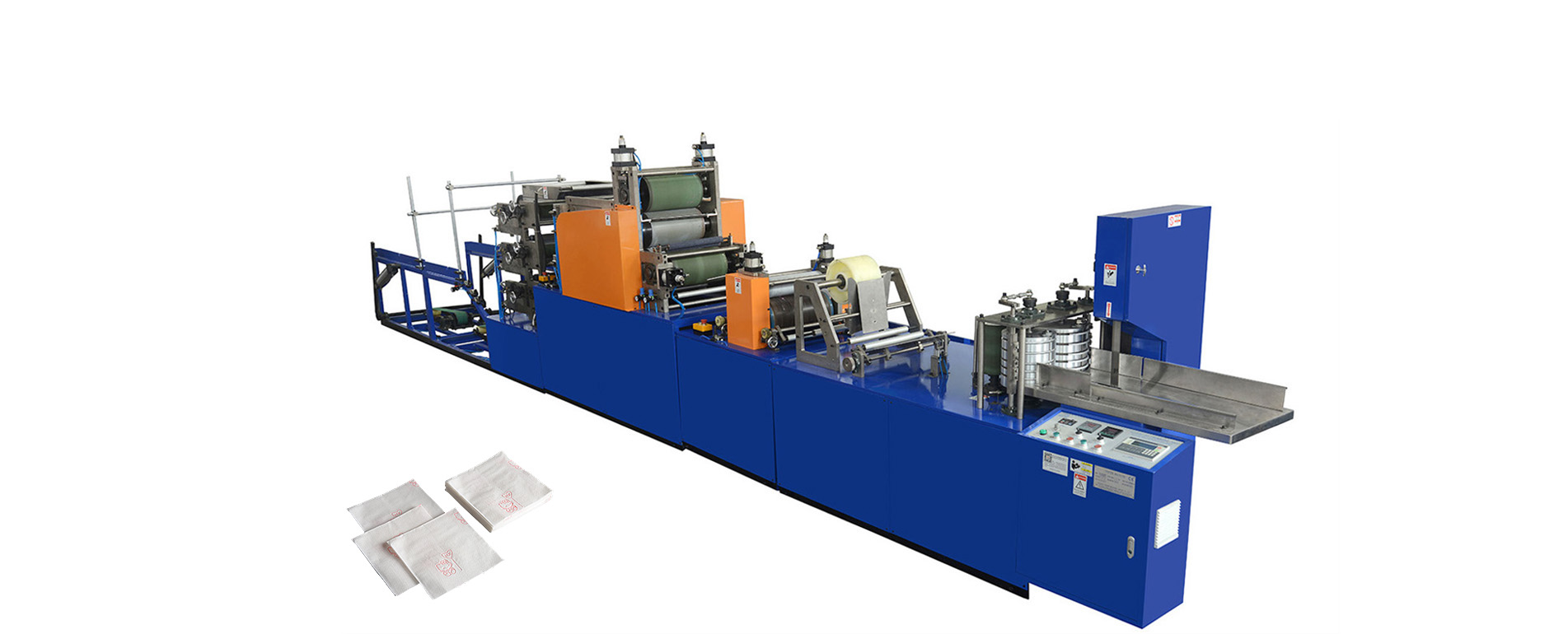

Three Color Printing 3D Embossed Gluing Napkin Folder Machine
Equipment introduction
This machine is to print, emboss and automatically fold the rolled paper which is cut well into square or rectangular Napkin Paper.( Can add 1-4 colors water ink printing system for printing diversified fine pattern, brand, with characters of clear and bright printing, exact overprint, high speed and stable running, is preferred equipment for processing good quality napkin paper.)
This machine consist of unwinding device, glue lamination device, embossing device, register adjustment device, lengthways folding device-, feeding device, crosswise folding device and cutting device.
Technical Parameter
| Production speed(pcs/min) | 600-800 |
| Finished product folded size(mm) | 190*190 |
| Jumbo roll width(mm) | 380 |
| Jumbo roll diameter(mm) | 1200 |
| Finished product unfolded size (mm) | 380*380 |
| Equipment power(KW) | 7 |
| Equipment weight (T) | about 1.5 |
| Equipment overall size (L×W×H)(mm) | 11200*1300*2000 |
