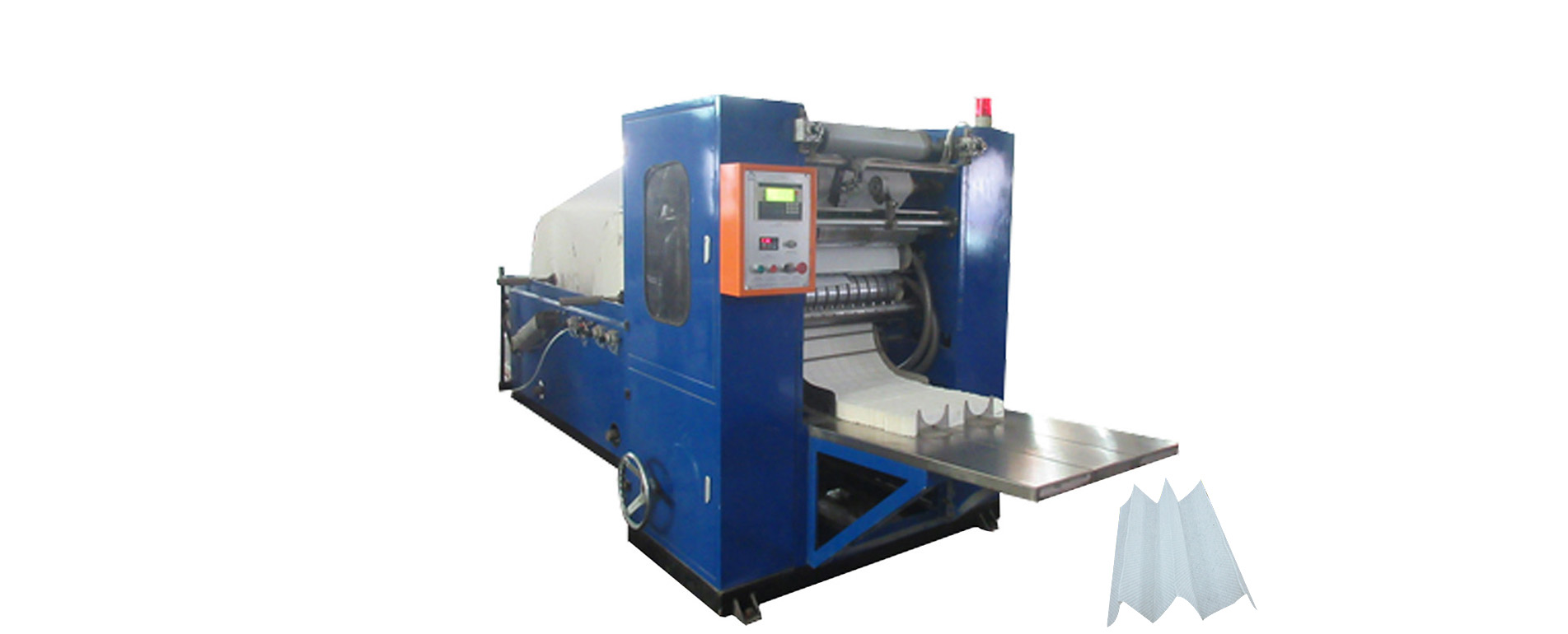

Full Automatic 6-Fold Hand Towels Paper Machine
Equipment Introduction
Automatic 6-fold Towels Folding machine makes the towels or wet strength tissue as materials to emboss,cut, fold and output, which are widely used in the hotels, offices and kitchens for wiping hands. The towels can be easily drawn out one after another from the paper dispensers or packaging boxes.The Machine with high speed and products are in neat folding.

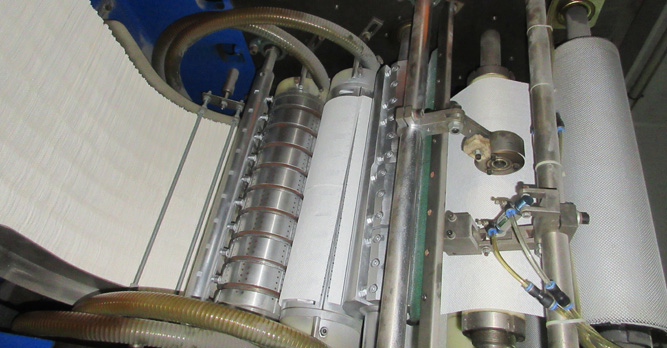

1.Steel to steel roll embossing, pneumatically press, embossing pattern can be customized.
2. Adopts synchronous belt transmission, transmission ratio is accurate, low noise.
3. Pneumatically type paper cutting blade, auto separation when the machine is stopped, convenient to pass through the paper.

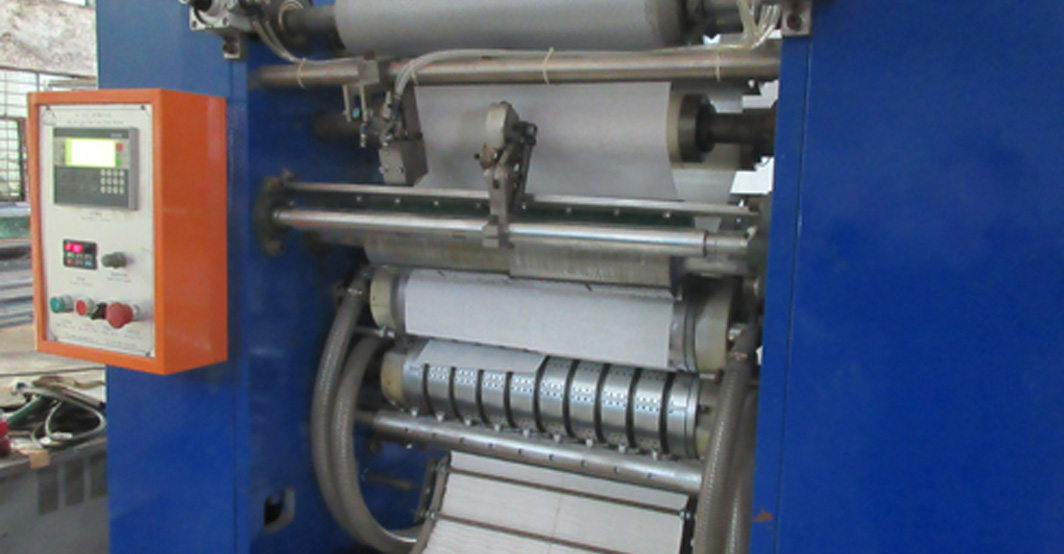

4. PLC programming control, electronic counting, equip with front and back inching switches.
5.Add glue lamination device, can produce paper towel or kitchen towel with glue lamination. Make 2 layers of paper stick together to enhance water absorption.
Technical Parameter
| Jumbo roll width (mm) | 460 (2 Lines output) |
| Jumbo roll diameter (mm) | 1200 |
| Unfolded size of finished product (mm) | 230×240 |
| Folded size of finished product(mm) | 230× 60+-2 |
| Paper Gram Weight (g/㎡) | 32-40 |
| Production speed | 6.About 600 pieces/minute ( 2 lines output) |
|
Machine power (KW) |
380V, 50HZ,3 phrases |
|
Equipment weight (T) |
2 |
| Equipment overall size (L×W×H) (mm） | 4500*1500*2000 |
