HX-220-2-6V

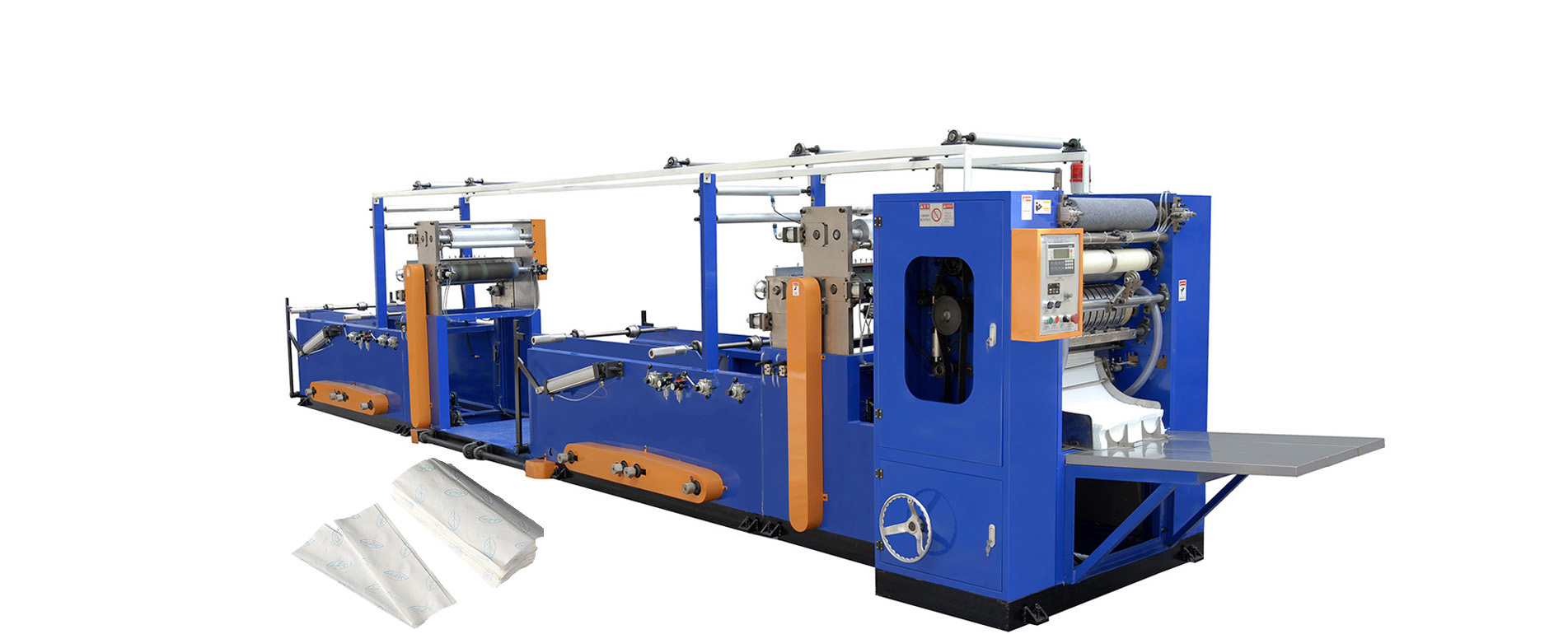

Interfold hand towel paper machine with glue lamination
Main Characteristic
1.Steel to rubber roll embossing, pneumatically press, embossing pattern can be customized.
2. Adopts synchronous belt transmission, transmission ratio is accurate, low noise.
3. Pneumatically type paper cutting blade, auto separation, which makes it easy to pass through the paper.
4. PLC programming control, electronic counting, install the point switch before and after .
5. Add glue lamination device, can produce Hand towel paper or kitchen towel paper with Glue lamination, to improve water absorption.
Technical Parameters
| Production speed (sheet/min) | 1000-1200 (according to the output lines） |
| Finished product unfolded size(mm) | 240(W) x220(L) |
| Finished product folded size (mm) | 240 (W) x 110 (L) |
| Jumbo roll Maximum width (mm) |
480（2 lines output） 960（4 lines output） 1440（6 lines output） Other sizes can be customized. |
|
Equipment power (KW) |
11（380V 50HZ） |
|
Equipment weight (T) |
2.5 |
| Equipment overall size (L×W×H) (mm） | 9400*1550*1950 |
