HX-ZJJ-A

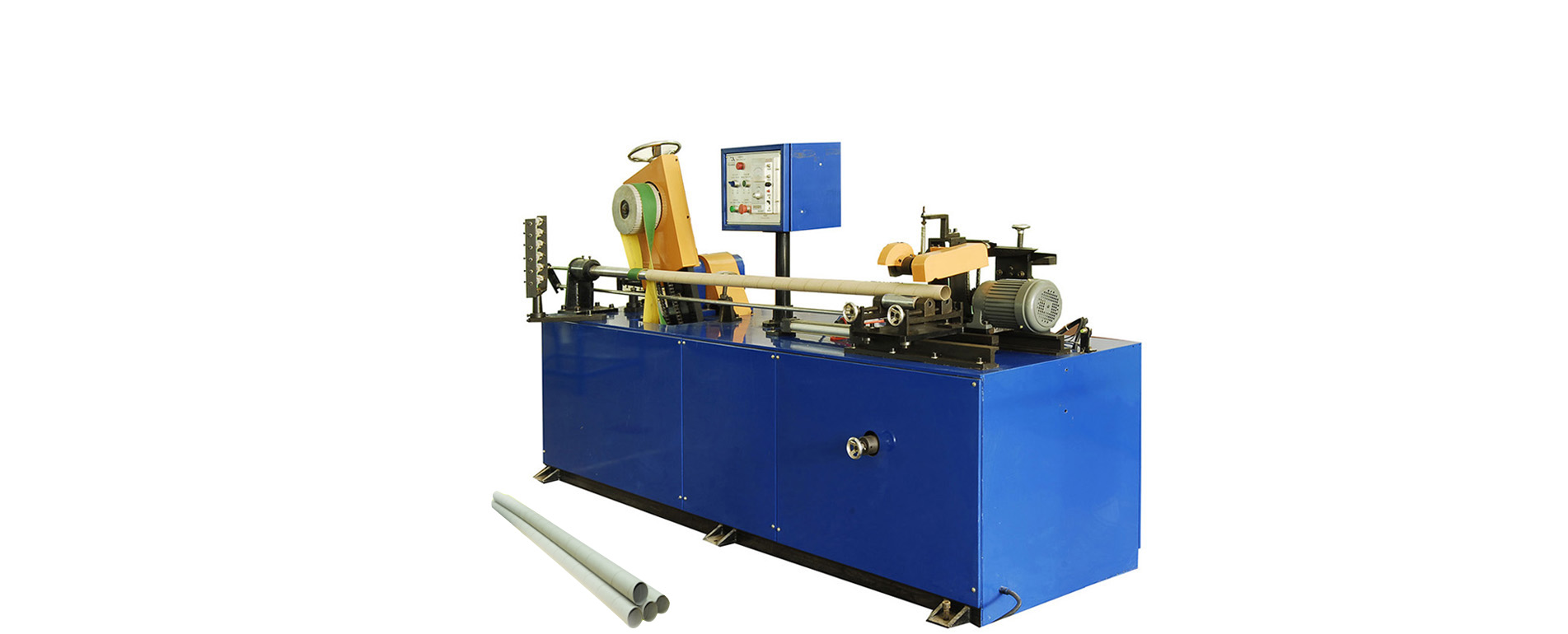

Paper core machine
Equipment introduction
The paper core produced by this machine is widely applicable to the paper making, textile, plastic, medical and packing industry. This machine can cut tubes automatically with even cut and precise length as requested.
Technical Parameter
|
Production speed (m/min) |
8-18 |
| Paper core inner diameter(mm) | 25-85（according to customer’s request） |
| Paper core layer | 2-4 layers |
|
Raw paper diameter (mm) |
700-800 |
| Raw paper width (mm) | 70-80 |
| Equipment power (KW) | 3.4（380V 50HZ） |
| Equipment weight (T) | about 1.2 |
| Equipment overall size(L*W*H) (mm) | 2800*760*1500 |
