HX-1500B

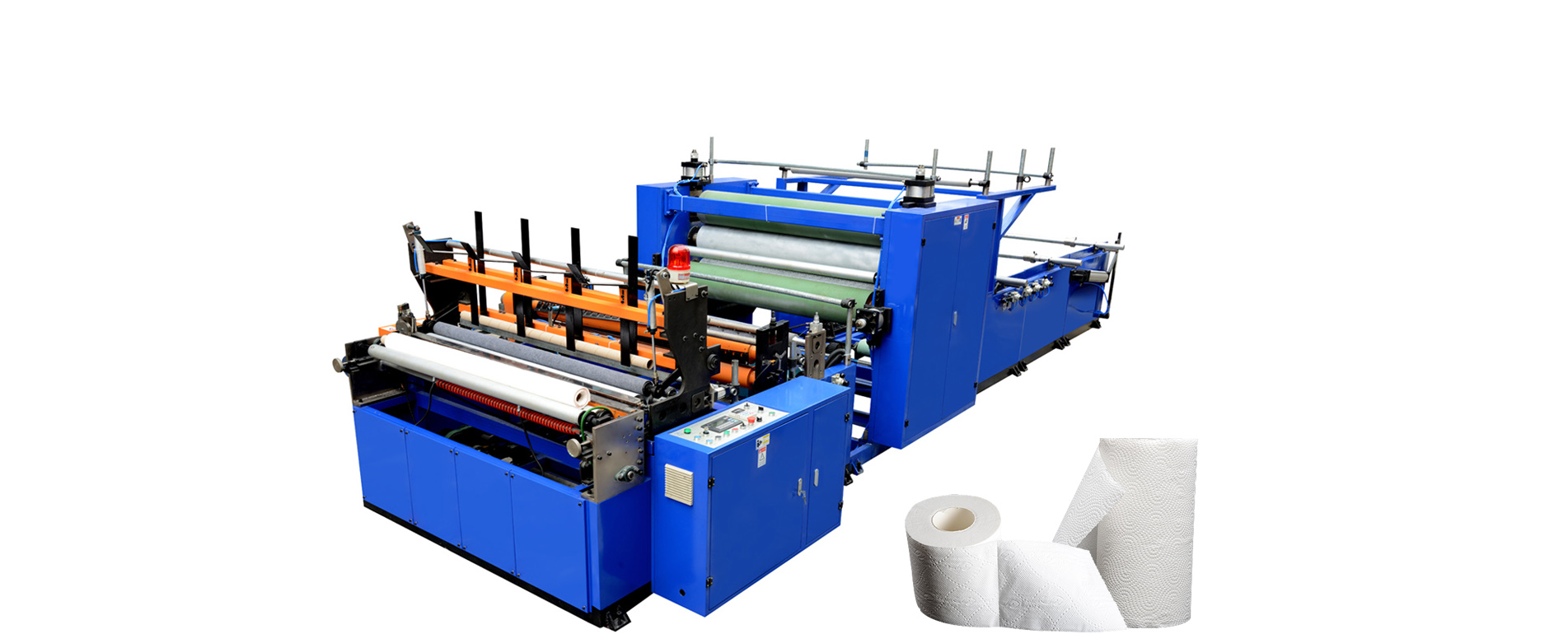

Glue lamination kitchen towel rewinder machine
Equipment Introduction

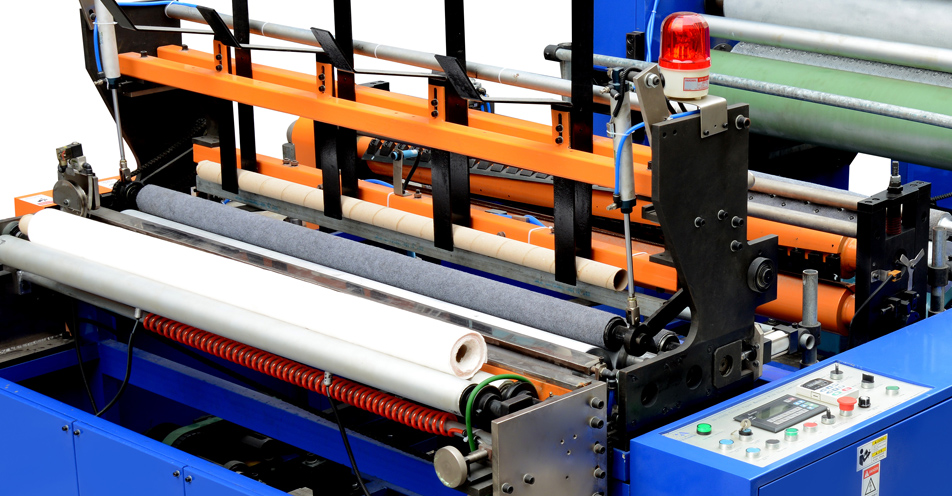

1.Change paper core automatically. The finished paper roll will be pushed out automatically, then change another paper core for rewinding. Many sizes of paper core are suitable.
2.Adopt PLC programmable controller to control the production process. The rewinding process of the product is tight first and loose afterward with different levels of tightness, to avoid the paper core of the finished products loose for long time storage.
3.Stepless unwinding raw paper to keep it is stable.
4.Jumbo Roll Paper is pneumatically uploaded onto machine. Machine stop when raw paper broke.
5.High precision soft screw knife , 4 pieces, to make lower noise. Perforating effect is good. Pneumatic control, easy for paper injection.

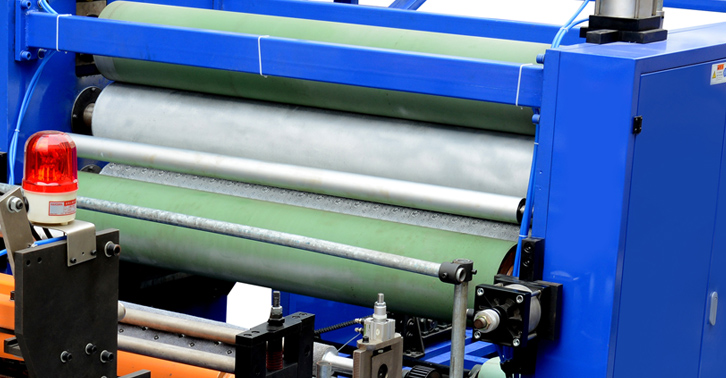

6.Embossing unit is steel to rubber rollers.
7.Gluing device: In the production of kitchen towel paper, the glue makes two plies of paper stick together to improve water absorption and appearance.
Technical Parameter
| Production speed (m/min) | 120-180 |
| Finished roll diameter (mm) | ≤130 |
| Perforating distance (mm) | 150-200（其他距离可定制） |
| Jumbo roll width (mm) | ≤1500 |
| Jumbo roll diameter (mm) | ≤1200 |
| Jumbo roll paper core inner diameter (mm) | 3′(φ76) |
| Air pressure (Mpa) | 0.5~0.8（air compressor prepared by customer） |
| Equipment power (KW) | 11.2（380V 50HZ） |
| Equipment weight (T) | about 5 |
| Equipment overall size (L*W*H) (mm) | 5700*2000*1700 |
