HX-170-400（330）

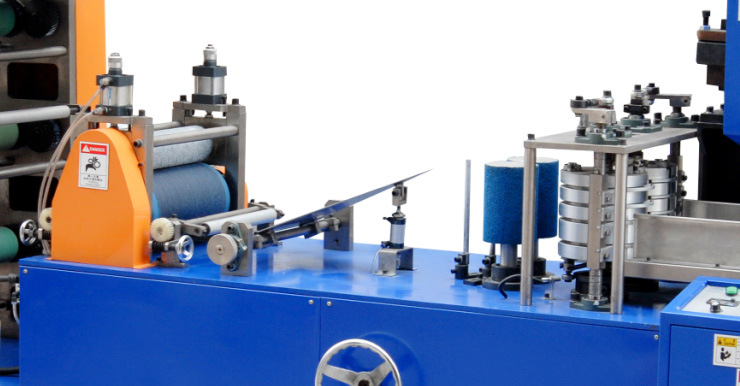

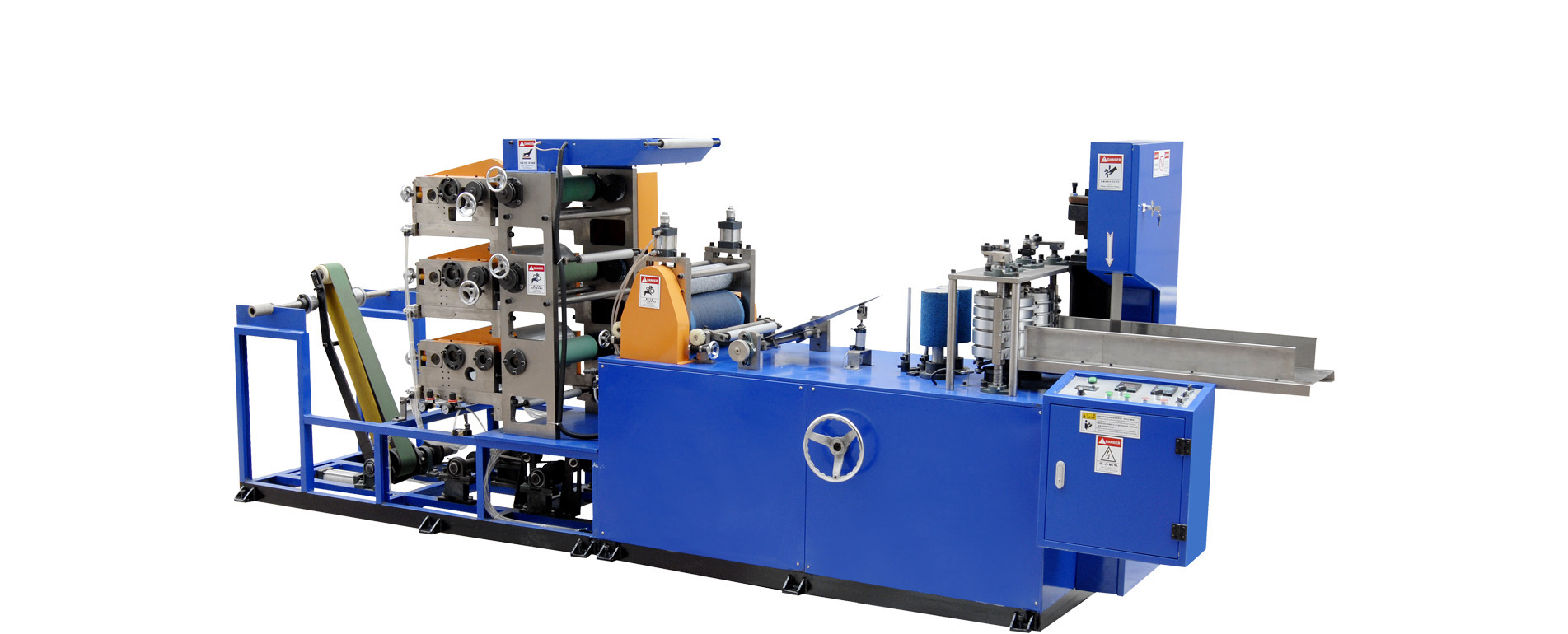

Napkin paper machine with three color printing
Equipment introduction
1. A variety of folded pattern can be selected, can be customized.
2. Design according to Europe CE standard, main electric elements adopt international famous brand product.
3. Most accessories is processed through good processing by numerical control machine tool, main mechanical parts adopt CNC processing.
4. Color printing part adopts flexography printing, pattern can replace flexibly according to requirement, adopt special color printing, net lines ink vibrator.
5. Stepless speed adjustment for unwinding roll, whole machine run synchronously, production automatic counting, can set automatic counting layered output, convenient for packing.
6. Bottom embossing roller adopt Felt Roller, Wool Roller, Rubber Roller(can select 1 kind among them) or steel to steel roller. Embossing can be selected to equip with heating system, pattern is bright.
Technical Parameter
| Production speed (pcs/min) | 600-800 |
| Finished product folded size(mm) | 165*165 |
| Jumbo roll width (mm) | 330 |
| Jumbo roll diameter(mm) | ≤1200 |
| Equipment power(KW) | 4.5（380V 50HZ 3phase） |
| Equipment weight (T) | about 1.5 |
| Equipment overall size (L×W×H)(mm) | 5300*1100*1700 |
