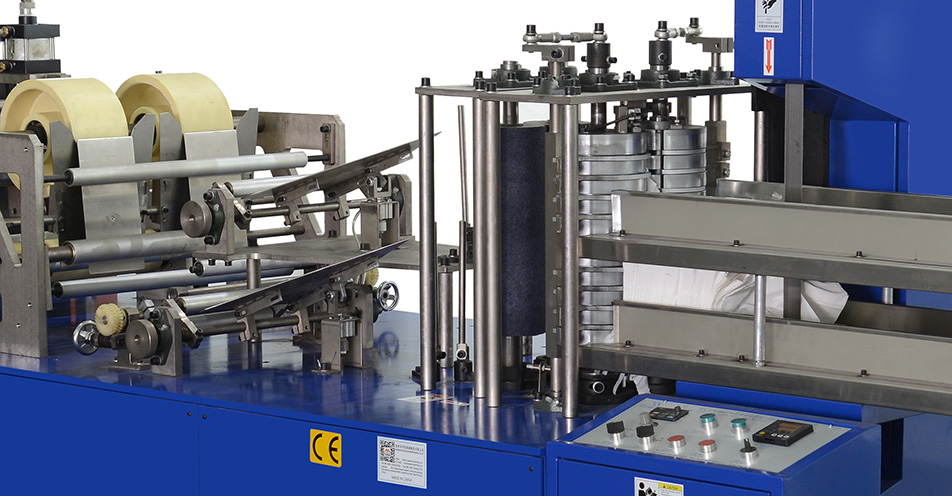

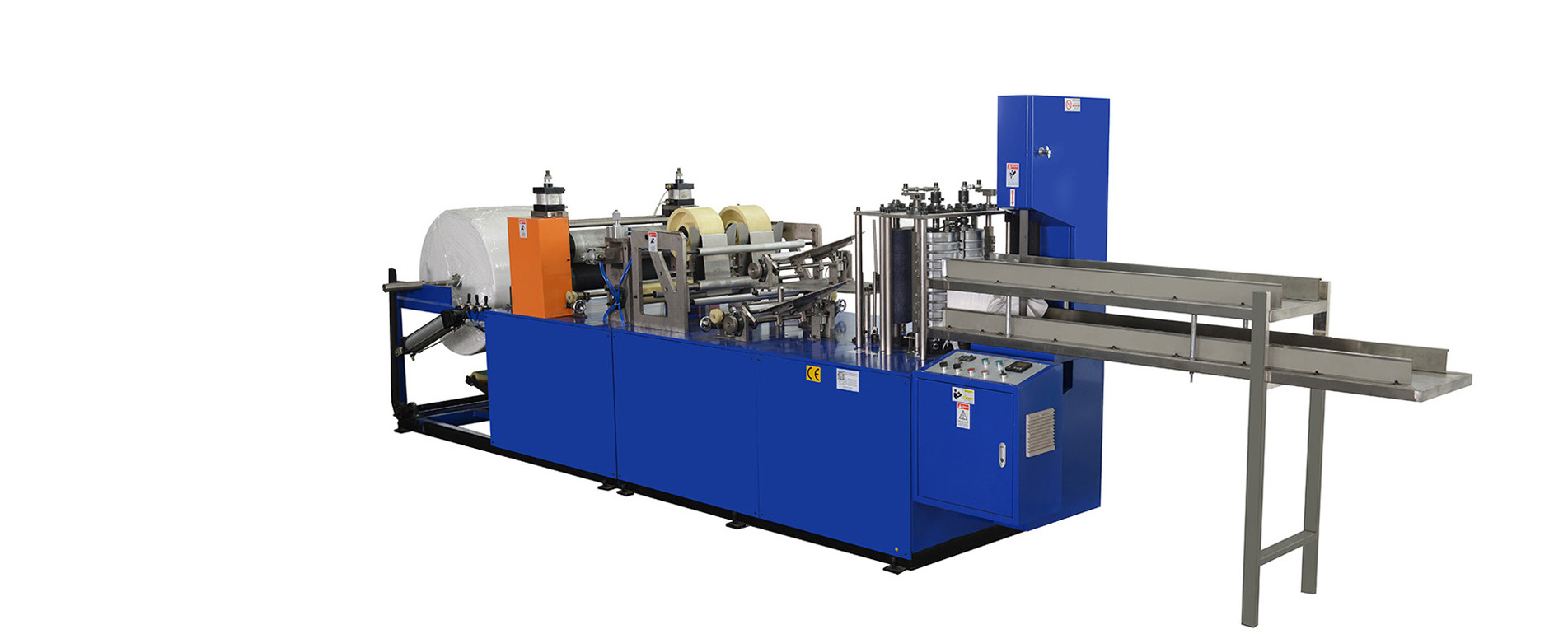

HX-170-400（280）
Double layers output Napkin Paper Folding Machine
Working principle
Loading material(load material pneumatically)- flat belt feeding - embossing - cutting - lengthways folding - counting - crosswise folding - cutting automatically - Production
Technical Parameter
| Folding size (mm) | 140×140±1 |
| Unfolded size(mm) | 280×280 |
| Specification of raw paper(mm) | ≤560×Ф1200 |

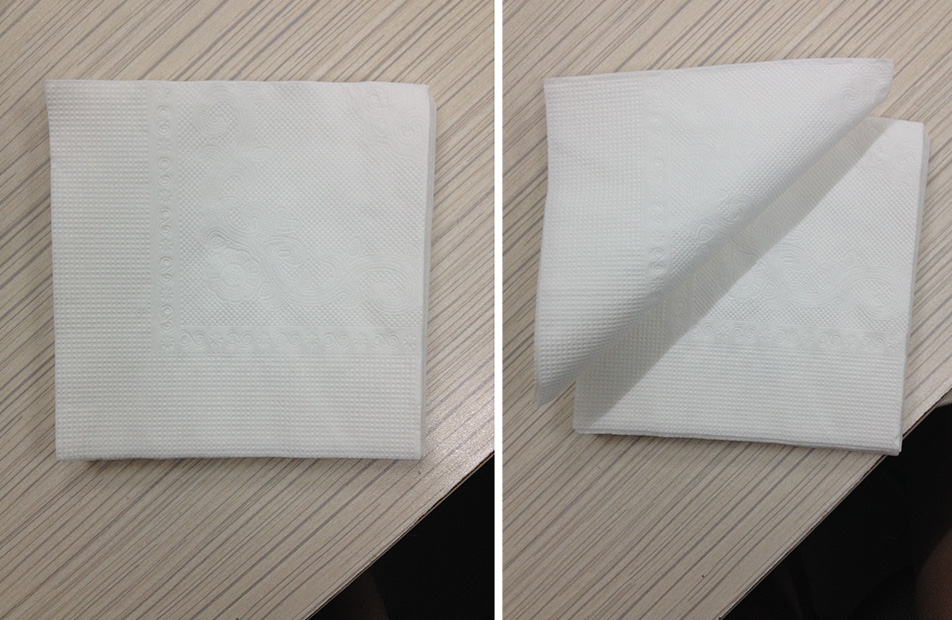

| Folding way | double triangle 1/4 folding |
| Embossing unit | The buyers should prepare it by themselves,we provide drawing. |
| Paper breakdown device(it is set between embossing unit and forming unit) | |
| One group knives: it automatically cut raw paper. | |
| The guide pipe is made from aluminium alloy,which can make sure the concentricity | |
| Feeding part |
it adopts belt to control the feeding process,AP ration gear can adjust stepless ;
Loading material pneumatically(the buyer should prepare the air compressor by himself);
Sharpen the knives pneumatically;
Automatic counting system.
|
|
Main motor is frequency conversion motor |
3kw，380V 50Hz |
|
Machine head transmission |
standard struction commutator. Output holder is double layer and made from stainless steel. |
| Machine capacity | speed is 1600 pcs/min. |
