HX-240-2M

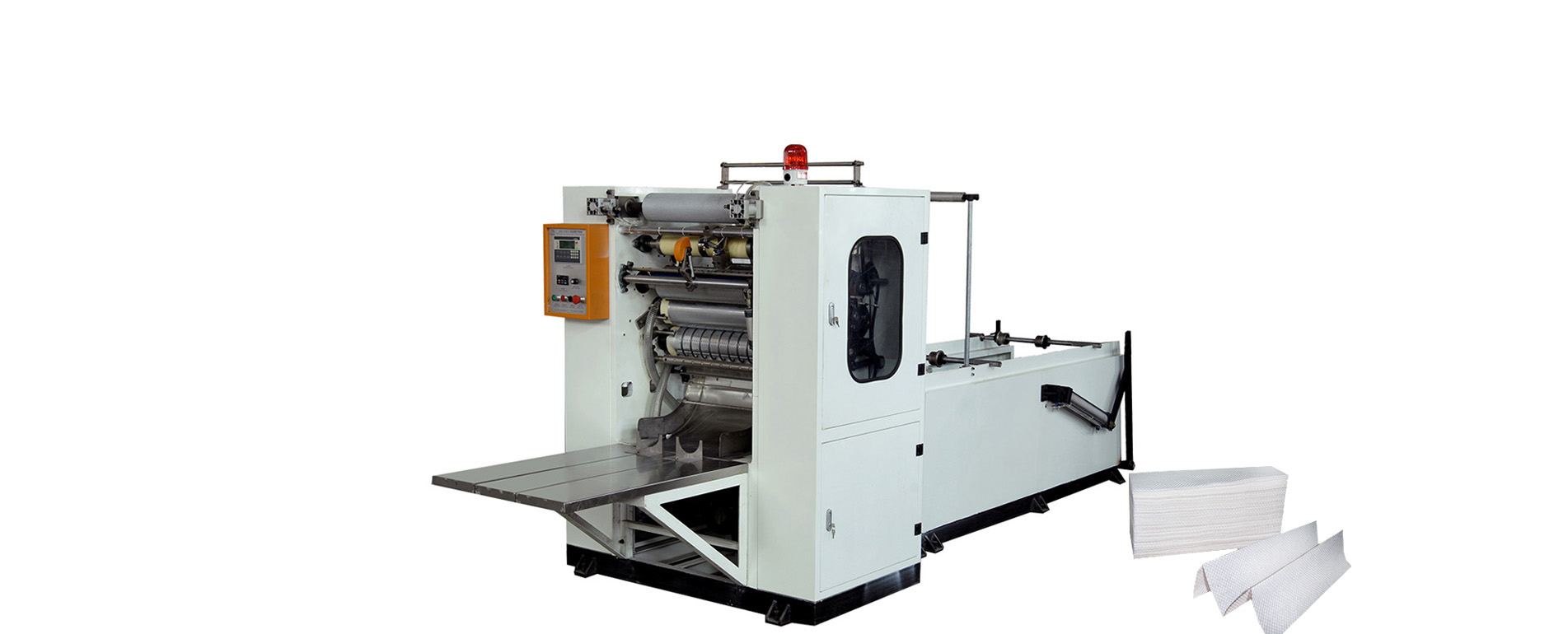

Folded hand towel paper making machine
Equipment Introduction
1.Steel to steel roll embossing, pneumatically press, embossing pattern can be customized.
2. Adopts synchronous belt transmission, transmission ratio is accurate, low noise.
3. Pneumatically type paper cutting blade, auto separation when the machine is stopped, convenient to pass through the paper.
4. PLC programming control, electronic counting, equip with inching switches in the front and back.
5.“M” folded hand towel machine with two jumbo roll stands.
Technical Parameter
| Finished product unfolded size (mm) | 240x230 (other size can be customized) |
| Jumbo roll Maximum diameter | Φ1200 (other size can be customized) |
| Production speed (sheets/ min) | 600-800 |
| Equipment power (KW) | 10.5（380V 50HZ） |
| Equipment weight (T） | 2.2 |
| Equipment overall size (L×W×H) (mm) | 3500*1480*2000 |
