HX-230

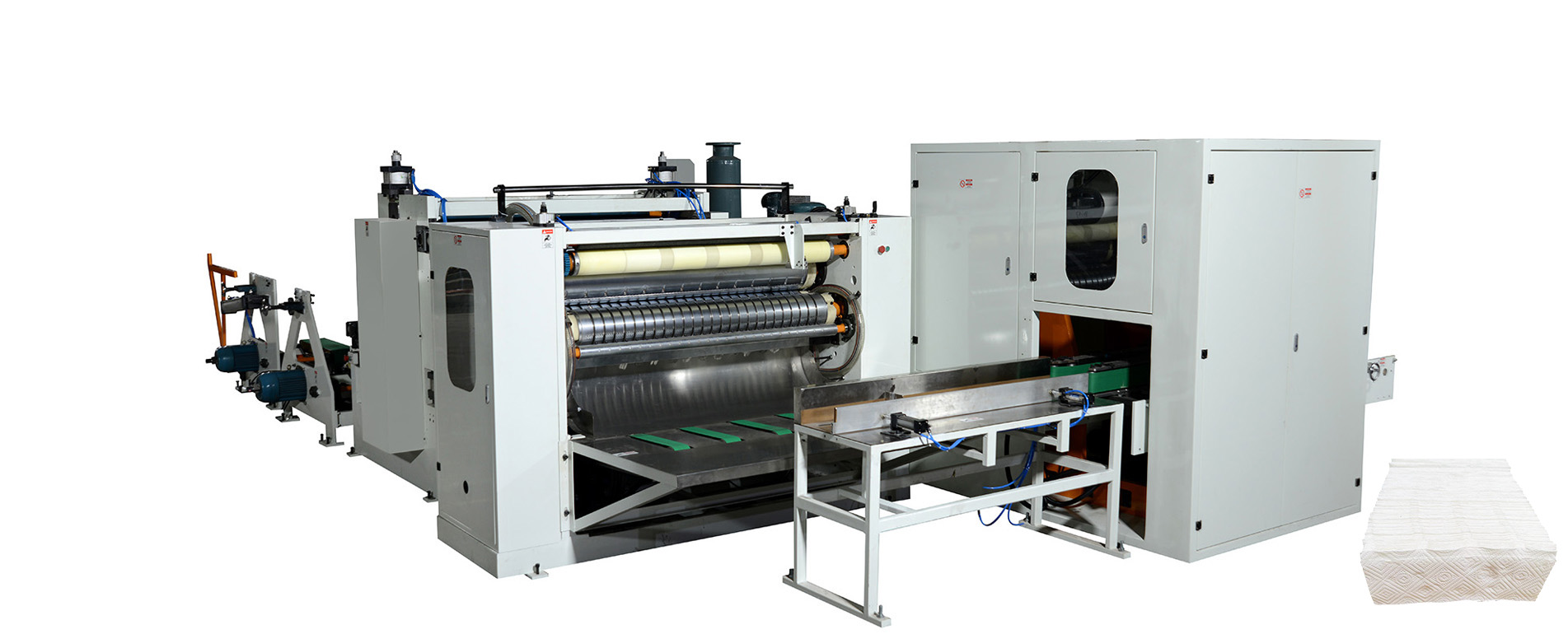

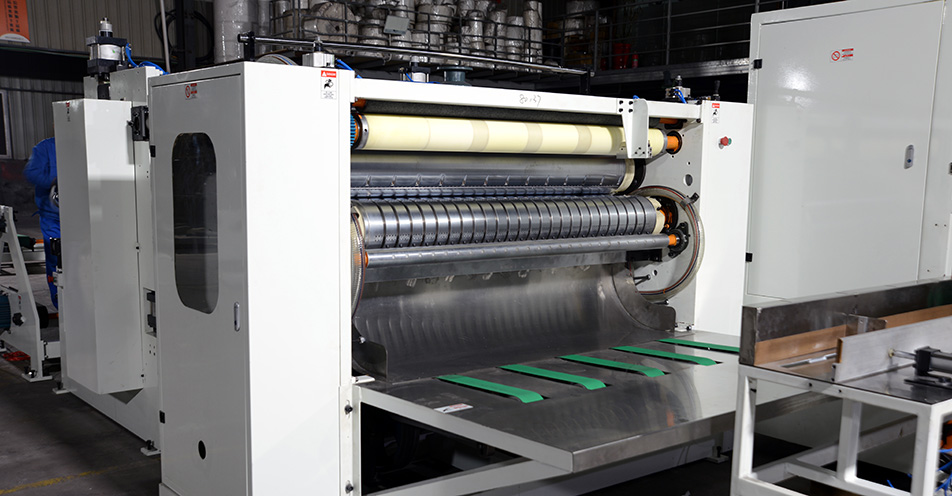

N Folding glue composite paper towel machine production line
Main Characteristics
1、Steel to rubber embossing, pneumatically press. The design is available to customer's requirement.
2、Transmitted by Synchronous belt. The transmitting speed is correct, and the noise is low.
3、Pneumatically cut and separate. The structure is simple, easy maintenance, lower blade wastage.
4、PLC control and electronically count. Equip with front and back inching switches.
5、Machine with one embossing units and one glue lamination device. It can produce N fold paper towel with glue lamination and N fold ordinary towel paper.

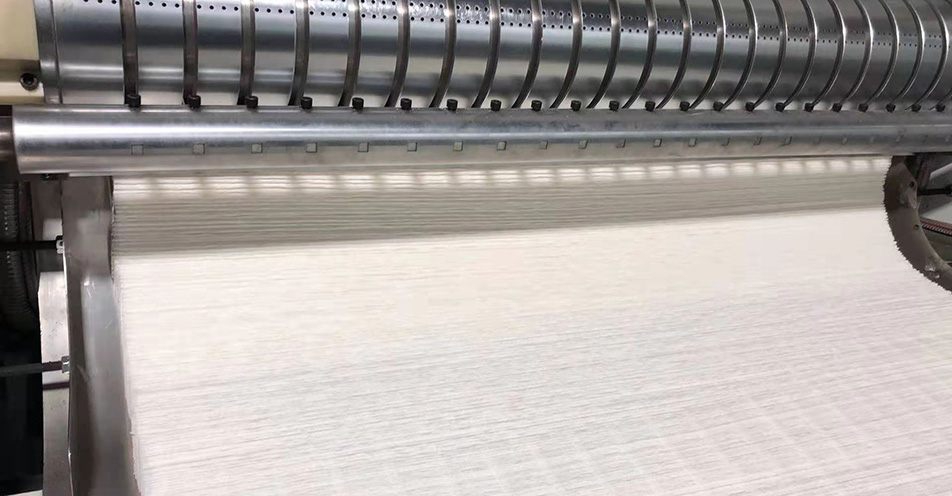

6、Stable vacuum adsorption leads to good folding accuracy and folding stability.
Technical Parameter
| Paper Towel Machine | Log saw cutter | ||
| Production Speed（m/min） | 60-80 | Paper length (mm) | 1400 |
| Jumbo roll Diameter | 1400 mm | Paper width (mm) | 70-80 |
| Jumbo roll width | 1400 mm | Production speed (cuts/min) | 80-100 |
| Jumbo roll inner core | 76.2 mm | Cutting Length | Cutting length can be adjustable |
| Unfolded size(mm) | 225 (W)*230 (L) | Lane | 1 Lane |
| Folded size (mm) | 225 (宽)*77±2 (长) | Blade grinding unit | Automatic grinding |
| Base paper requirements (g/㎡) | 20-40 | Grinder feeding | Automatic |
| Machine Power (kW) | Total power of main machine 19kw+with Roots Vacuum pump 22 kw | Power (kW) | 8.2 |
| Machine Weight(T) | about 2.5 | Machine Weight (T) | about 2 |
| Machine Overall Size(L*W*H)(mm) | 7000*3000*2000 | Machine Overall Size(L*W*H)(mm) | 3000* 3000*2000 |
