HX-230-2N

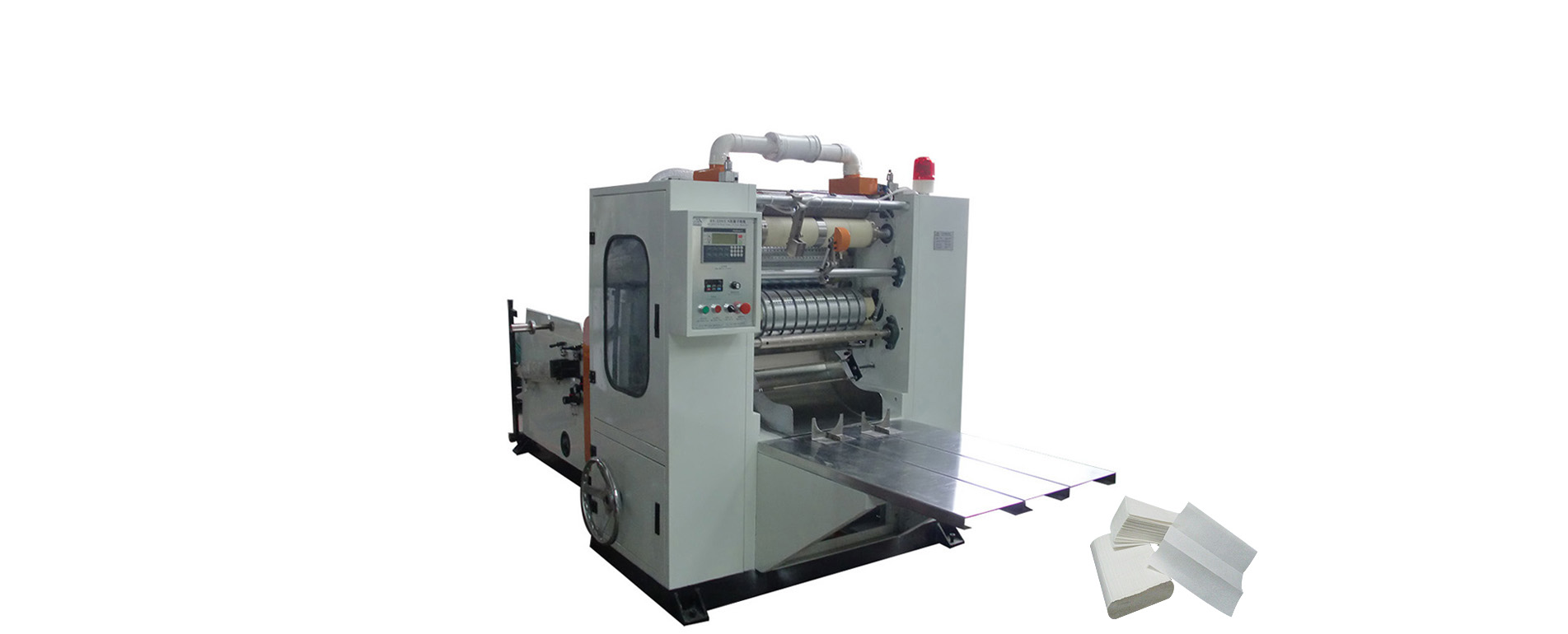

Automatic N-fold Hand Towel Paper Folding machine
Equipment Introduction
Automatic N-fold Towels Folding machine makes the towel paper or wet strength tissue as materials to emboss, cut and then interactive folding into “N - shaped” towels , which are widely used in the hotels, offices and kitchens for wiping hands. The towels can be easily drawn out one after another from the paper dispensers or packaging boxes. The Machine with high speed and products are in neat folding .
Main Characteristic
1.Steel to steel roll embossing, pneumatically press, embossing pattern can be customized.
2. Adopts synchronous belt transmission, transmission ratio is accurate, low noise.
3. Pneumatically type paper cutting blade, auto separation when the machine is stopped, convenient to pass through the paper.
4. PLC programming control, electronic counting, equip with front and back inching switches.
Technical Parameter
| Finished Products Unfold Size (mm) | 230x230(Other sizes are available) |
| Jumbo roll diameter (mm） | Φ1200(Other sizes are available) |
| Jumbo roll Inner core diameter (mm） | 76.2(Other sizes are available) |
| Production speed (Sheets / min ) | 750-850 |
|
Machine power (KW) |
2.2（380V 50HZ） |
|
Equipment weight (T) |
1.8 |
| Equipment overall size(L×W×H) (mm） | 3500*1480*2000 |
