HX-230-2

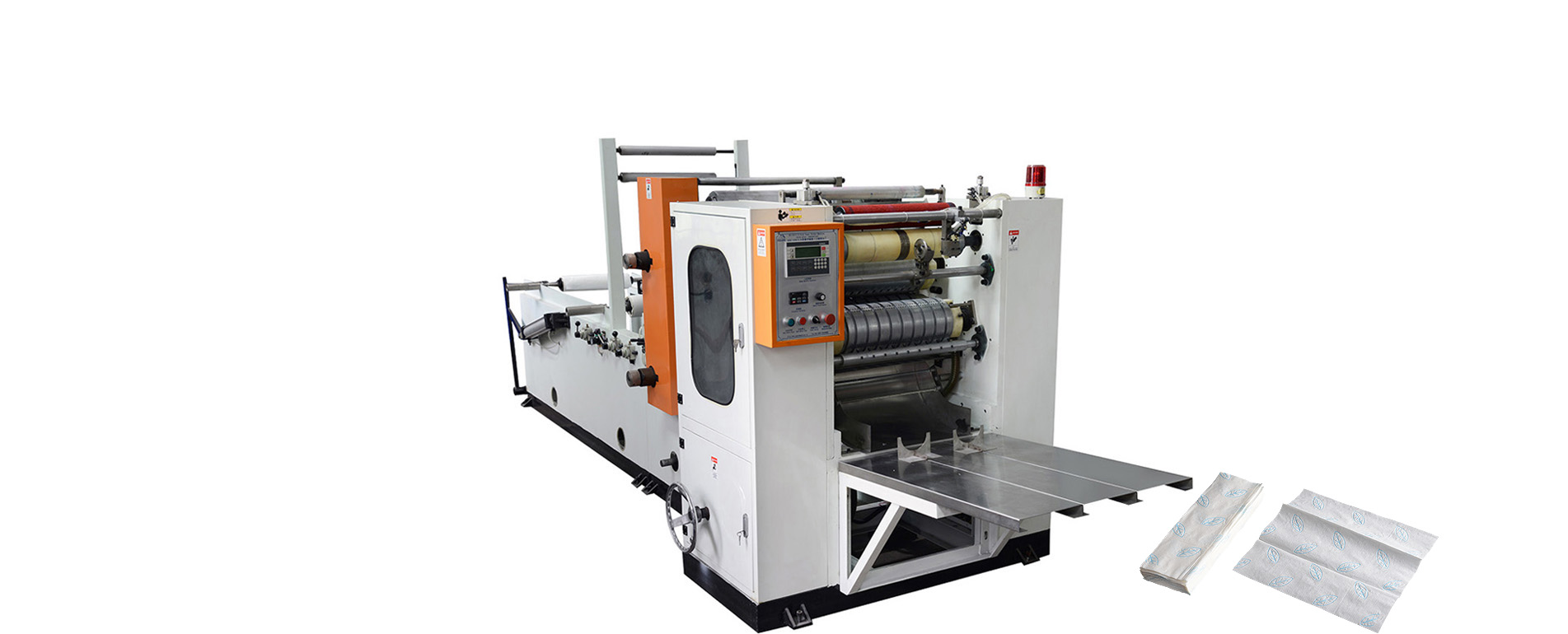

N Fold Hand Towel Paper machine (3D embossed gluing lamination foler)
Main Characteristic
1.Steel to rubber roll embossing, pneumatically press, embossing pattern can be customized.
2. Adopts synchronous belt transmission, low noise.
3. Pneumatically type paper cutting blade, auto separation when the machine is stopped, convenient to pass through the paper.
4. PLC programming control, electronic counting, equip with front and back inching switches .
5. Machine with two embossing units and one glue lamination device. It can produce N fold towel paper with color glue, to enhance water absorbability.
Technical Parameter
| Finished product unfolded size | 230x230 (other size can be customized) |
| Jumbo roll Maximum diameter(mm) | Φ1200 (other size can be customized) |
| Jumbo roll Maximum width （mm） | 460mm（2lines output） |
| Jumbo roll inner core diameter (mm) | 76.2 |
| Production speed (sheets/min) | 750-850 |
|
Equipment power (KW) |
10 （380V 50HZ） |
|
Equipment weight (T) |
about 2 |
| Equipment overall size (L×W×H) (mm） | 4500 X1480X2000 |
