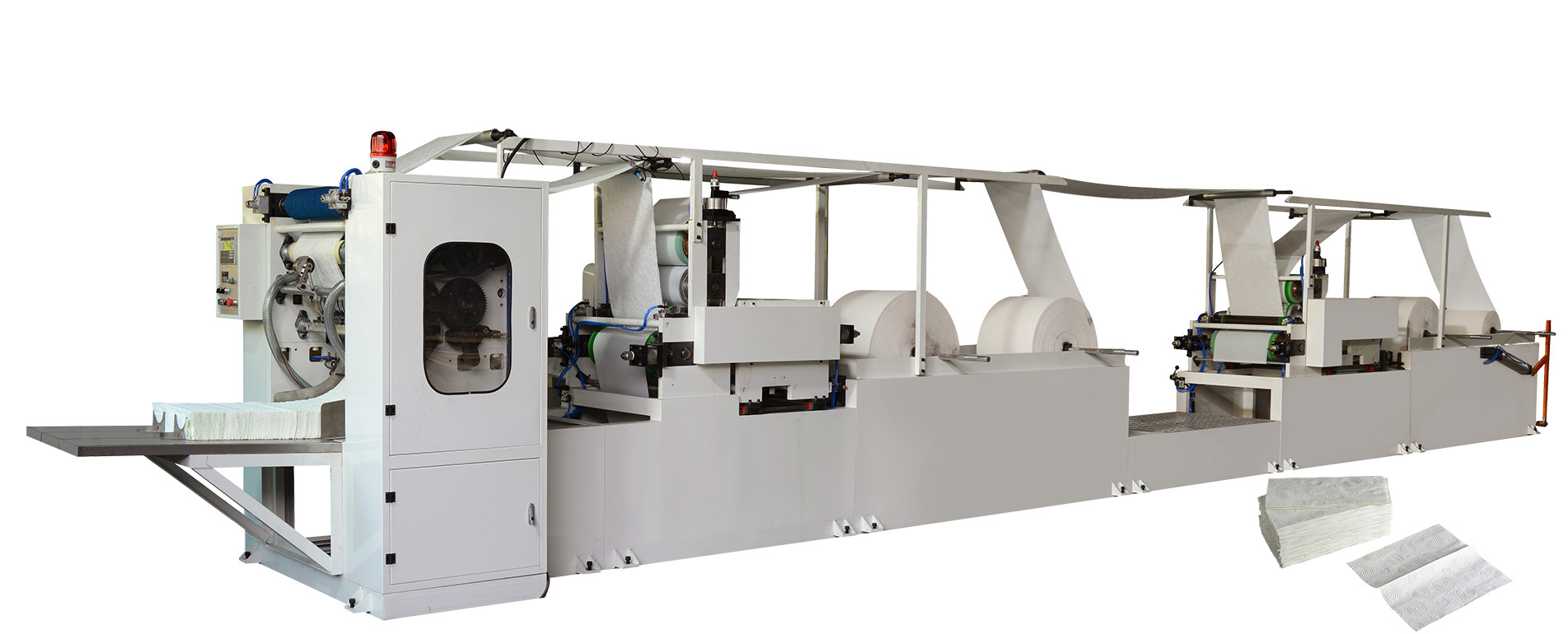

HX-210-230-2
V Embossed gluing lamination machine
Equipment Introduction
1.Steel to rubber roll embossing, pneumatically press, embossing pattern can be customized.
2. Adopts synchronous belt transmission, transmission ratio is accurate, low noise.

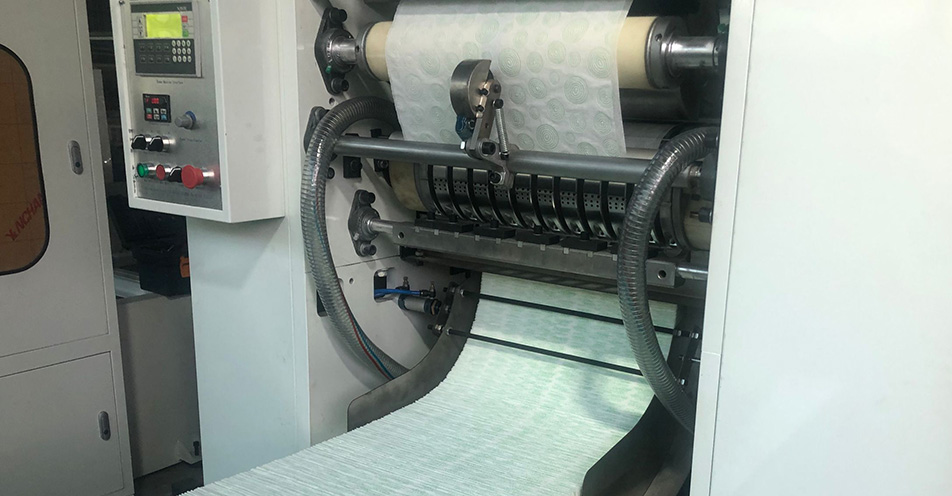

3. Pneumatically type paper cutting blade, auto separation, which makes it easy to pass through the paper.
4. PLC programming control, electronic counting, install the point switch before and after .
5. Gluing lamination device,which can produce Hand towel paper or kitchen towel paper with Glue lamination.
Technical Parameters
| Production speed (sheet/min) | 700-800 |
| Unfolded size (mm) | 210*230 |
| Folded size (mm) | 105*230 |
| Jumbo roll Width(mm) | 460 （2lines output）Other sizes can be customized. |
| Jumbo roll Diameter (mm) | ≤1200 |
|
Equipment power (KW) |

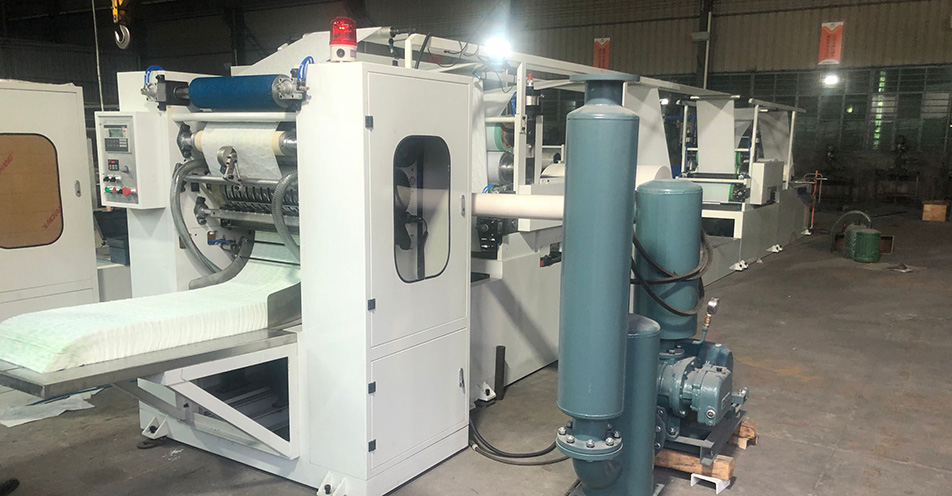

13 (380V 50HZ)Roots Vacuum Pump |
|
Equipment weight (T) |
about 5 |
| Equipment overall size (L×W×H) (mm） | 12000*1750*1700 |
