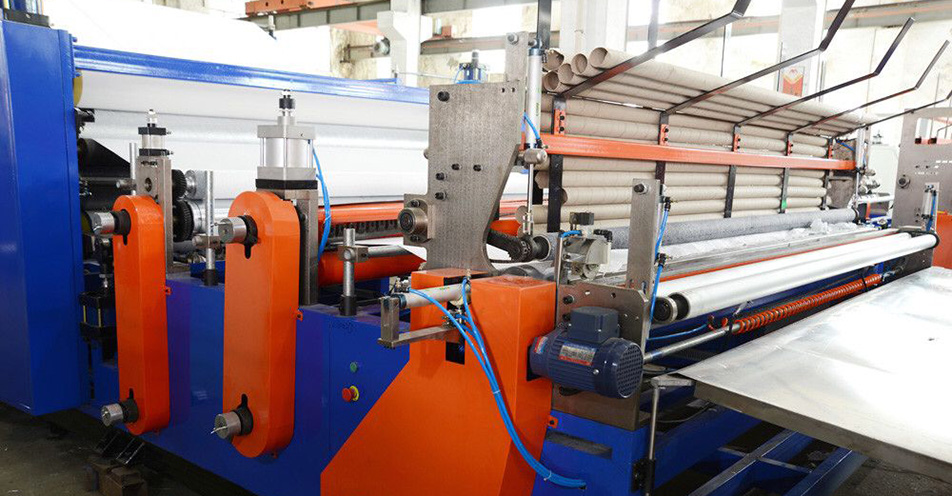

HX-2800B

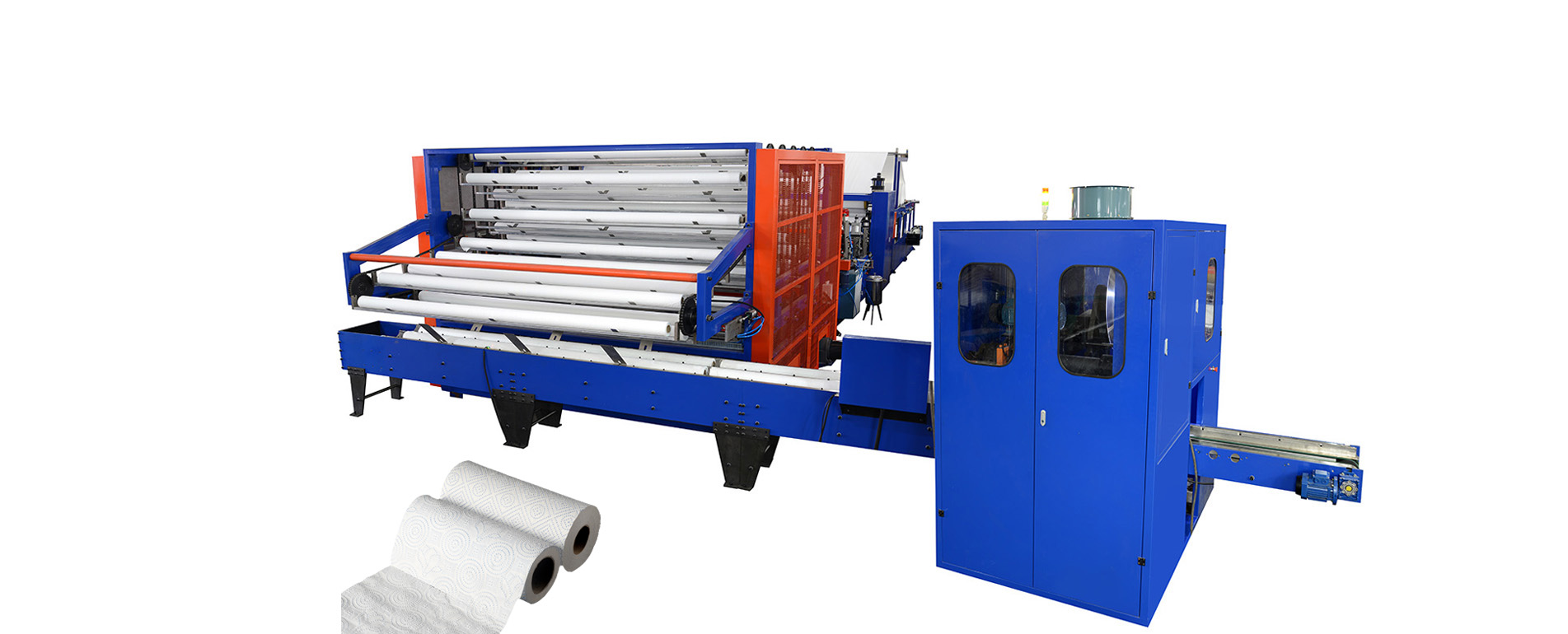

Automatic kitchen towel paper machine production line
Equipment Introduction
1.Adopts PLC programmable controller to control the production processes.
2.Automatic paper core replacement and rewinding, automatic edge trimming and spraying, paper core replacement and rewinding rise -and- fall speed automatically .
3.The rewinding process of the product is tight first and loose afterward, to avoid the product paper core loose phenomenon.
4.Can produce paper roll with core or without core.
5. Automatic prompt to add paper core tube, machine automatically stop when paper core using up.
6.The machine will stop automatically when the raw paper broken.
7. The unwinding of raw paper is controlled by tension.
8. Jumbo Roll Paper is pneumatically uploaded onto machine (this machine with two jumbo roll stands).
9. One person is needed for the whole equipment operation from jumbo roll to final paper product.
Technical Parameter
| 2800B rewinding machine | |
| Production speed (m/min) | about 100-180 |
| Finished paper roll diameter (mm) | ≦100-130 |
| Jumbo roll paper request(g/m²) | single plies 19 |
| Perforating distance (mm) | 100-200 |
| Jumbo roll width (mm) | ≦2800 |
| Jumbo roll diameter (mm) | ≦1200 |
| Equipment power (KW) | about 15.4 （380V 50HZ 3PHASE) |
| Equipment weight (T) | about 11.2 |
| Equipment overall size(L*W*H)(mm) | 11000*3500*2300 |
| Paper roll storage rack | |
| Introduction | It is for storing logs which producing from the rewinding machine |
| Log length (mm) | 2800 |
| Log diameter (mm) | 100-130 |
| Effective log Qty ( logs) | 80 |
| Equipment power (KW) | 4.4 (380V 50HZ 3phase) |
| Equipment weight (T) | about 3 |
| Equipment overall size(L*W*H)(mm) | 4300*4000*2500 |
| Log saw cutting machine | |
| Log length (mm) | 2800 |
| Log diameter (mm) | φ100~φ130 (Can be customized) |
| Production speed | Cutting times 80~100 cut/min×2rolls/time |
| Equipment power (KW) | 5.57（380V 50HZ） |
| Equipment weight (T) | about 3.5 |
| Equipment overall size(L*W*H) (mm) | 8200*2020*2300 |
