HX-2400B

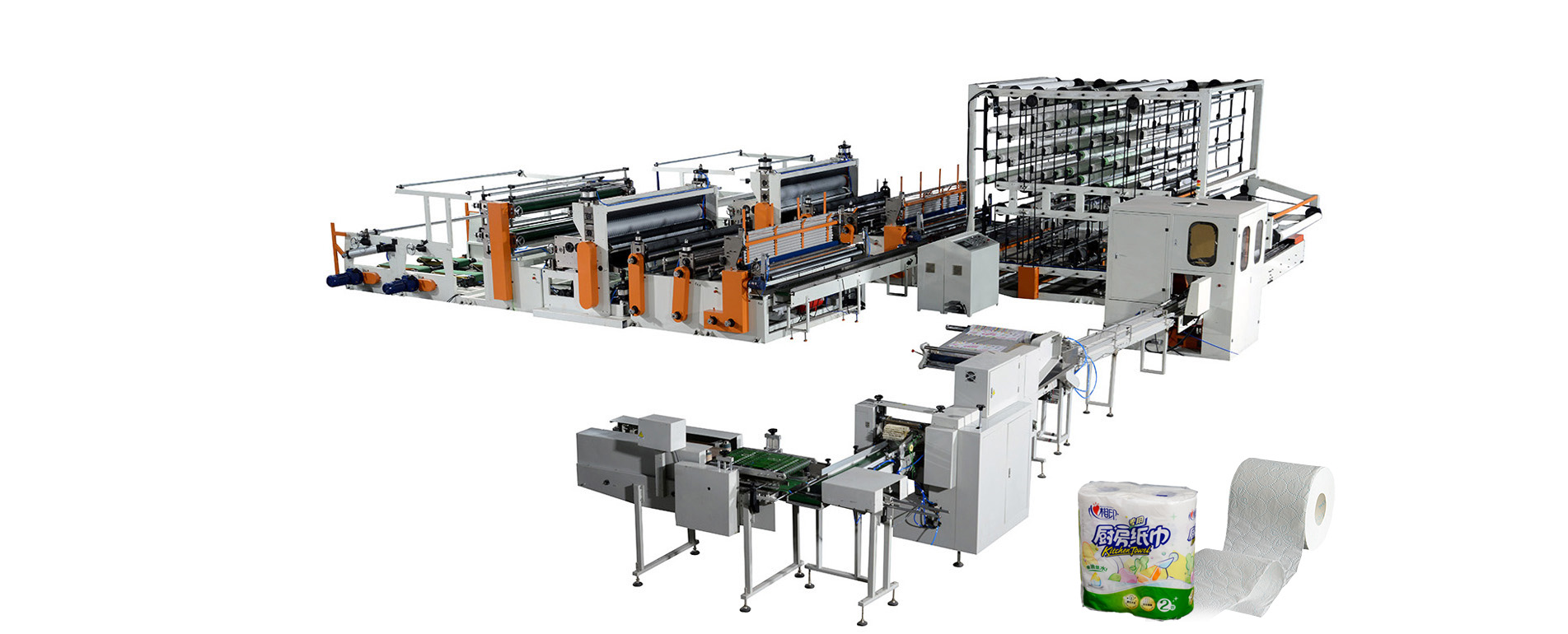

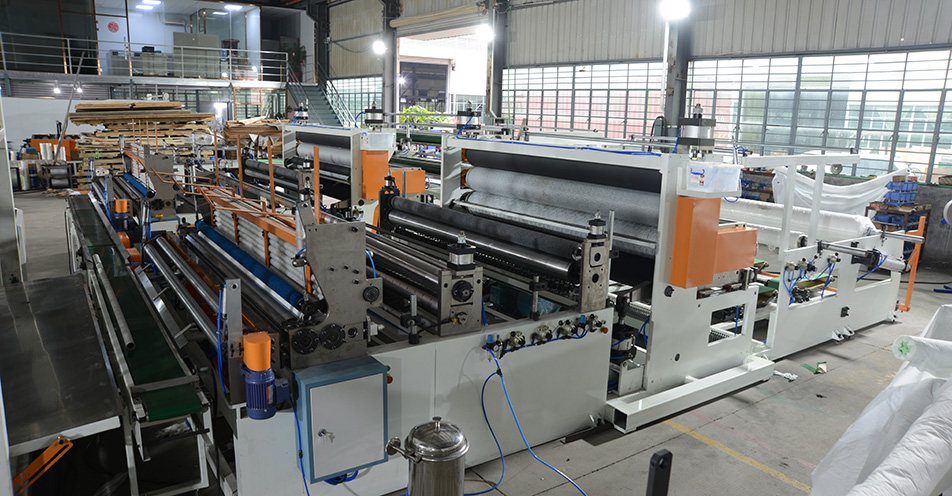

Gluing lamination toilet paper kitchen towel production line
Equipment Introduction
The Kitchen Towel and Toilet Paper Roll Production Line (A professional production line for producing kitchen towel paper and Toilet Paper Roll).Customers who need to order this production line, please contact us!
This production line can produce the products as shown in pictures:
1.Kitchen towel paper with glue lamination and two color printing
2.Kitchen towel paper with glue lamination
3.Toilet paper Roll with glue lamination
4.Edge embossed Toilet paper roll.
As shown in picture!
Technical Parameter
| 2400B | |
| Production speed(m/min) | about 100-180 |
| Finished paper roll diameter (mm) | ≦100-130 |
| Jumbo roll paper request (g/m²) | single plies 19 |
| Perforating distance (mm) | 100-150 |
| Jumbo roll width (mm) | ≦2400 |
| Jumbo roll diameter (mm) | ≦1200 |
| Equipment power (KW) | about 30.8 （380V 50HZ) |
| Equipment weight (T) | about 15 |
| Equipment overall size(L*W*H) (mm) | 7500*3700*1800 |
| Paper roll storage rack | |
| Introduction | Used to store the production of paper roll from perforating &rewinding machine |
| Log length(mm) | 2400 |
| Log diameter (mm) | 100-130 |
| Effective log Qty ( logs) | 80 |
| Equipment power (KW) | 4.4 (380V 50HZ) |
| Equipment weight (T) | about 2.8 |
| Equipment overall size(L*W*H) (mm) | 5300*4400*2400 |

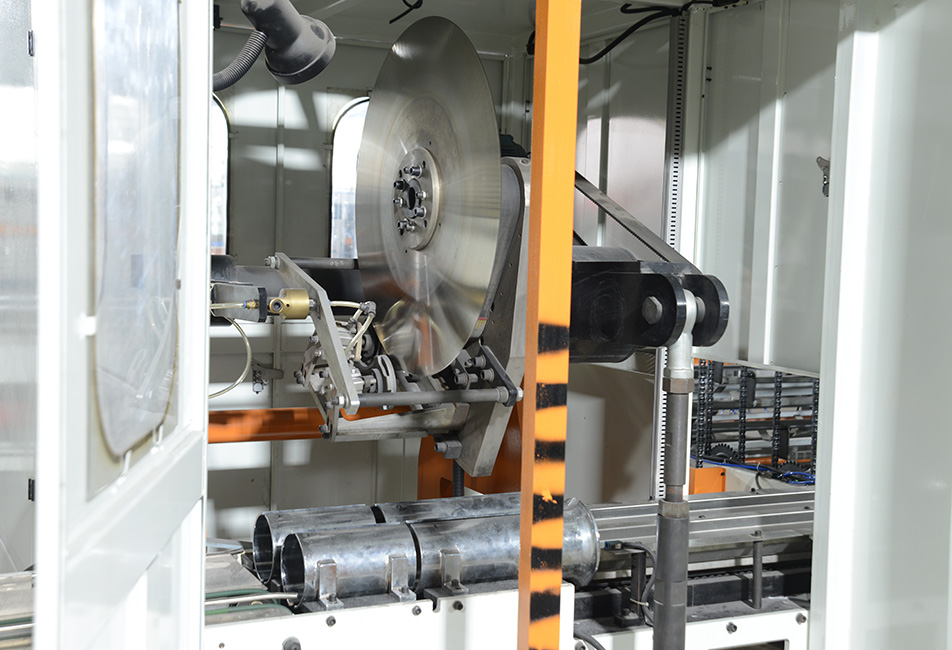

| Log saw cutting machine | |
| Log length (mm) | 2400 |
| Log diameter (mm) | φ100~φ130 (Can be customized) |
| Production speed | Cutting times 80~100 cut/min×2rolls |
| Equipment power (KW) | 5.57（380V 50HZ） |
| Equipment weight (T) | about 2.8 |
| Equipment overall size(L*W*H) (mm) | 4000*1700*1800 |
