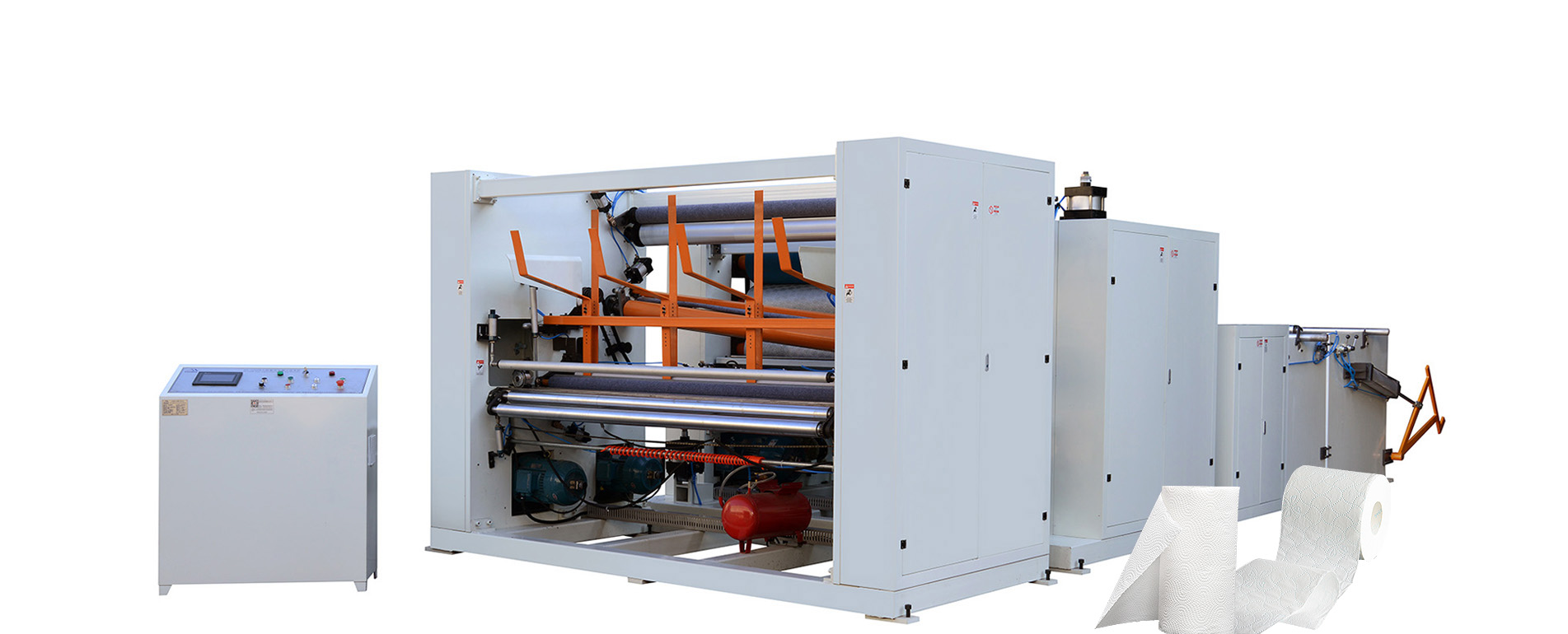

HX-2200B
Glue lamination and lazy rag rewinding machine
Equipment Introduction
1. Adopt PLC programmable controller, separate motor drive, tension control adjustment is adjusted on the operating screen.
2. Man-machine conversation, easy operation with high production efficiency. Machine stop when raw paper broke.
3. Equipment production process:
Two jumbo roll stands (Pneumatic lifting raw paper)---One group of Embossing and glue lamination unit ---one set of steel to steel embossed( for produce lazy rag with embossing heating)----pressing and conveying device----perforating unit ----rewinding unit ---Tail trimming and gluing(including auto discharge)
Technical Parameter
| Design speed(m/min) | 250 |
| production speed (m/min) |
Stable production speed for producing glue lamination:150-200 depends on the rewinding diameter Stable production speed for producing lazy rag: 60-80 m/min |
| Finished roll diameter (mm) | 100-130 |
| Perforation distance (mm) | 100-240 |
| Jumbo roll paper width (mm) | 2170 mm (According to customer requirements,from 1500-2850 mm) |
| Jumbo roll paper diameter (mm) | 1200 |
| Raw paper weight (gsm) | 13-40 |
| Machine weight | |
| Machine power(KW) | about 27.1 kw +heating 16 kw (380V 50HZ) |
| Machine Overall size(L*W*H) (mm) | 7000*3580*2150 |
