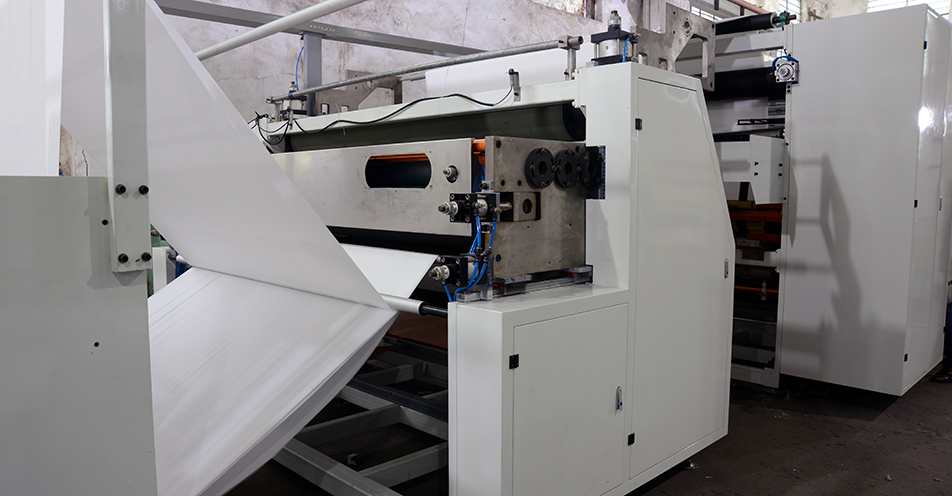

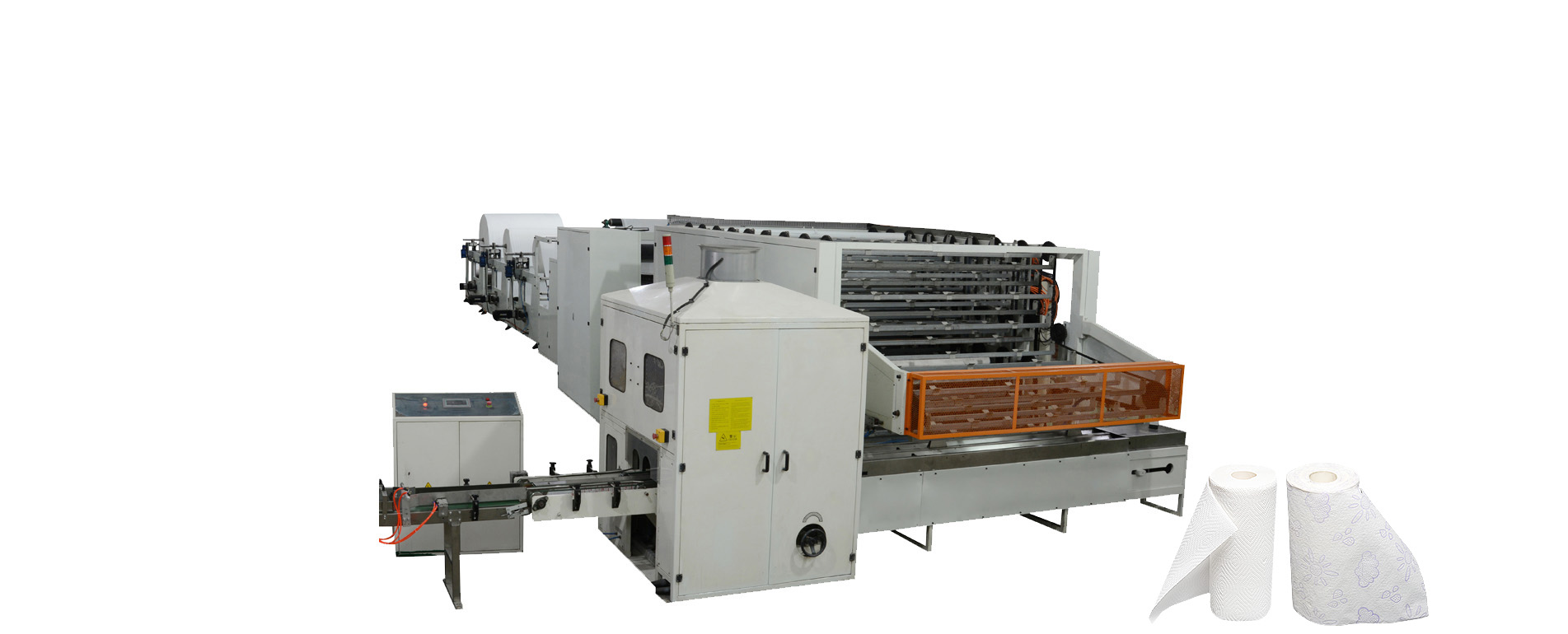

HX-2100H
Non-stop Toilet paper Rewinding Production
Equipment Introduction
1.Non stop, continuous rewinding.
2. Each part is controlled by servo motor, and the mechanism is simple, greatly reduce the failure rate.
3. Servo motor control the speed , cut paper on the perforating line, stable and accurate.
4. The PLC touch screen control system is adopted to realize precision control, which ensures accurate and clear perforation, and the paper roll tightness is suitable.
5. Man-machine interface regulates the pitch of the perforation.
6. The embossing unit and the gluing lamination unit can be used to produce various kinds of toilet paper and kitchen roll paper with different patterns .
Technical Parameters
| 2100H | |
| Production speed: (m/min) | about 150-200 |
| Perforating line distance (mm) | 100-150 |
| Jumbo roll width (mm) | ≦2100 |
| Jumbo roll diameter(mm) | ≦1400 |
| Equipment power (KW) | about 24.82 （380V 50HZ 3 Phase) |
| Equipment weight (T) | about 15 |
| Equipment size (L*W*H) (mm) | 10340*4040*2500 |

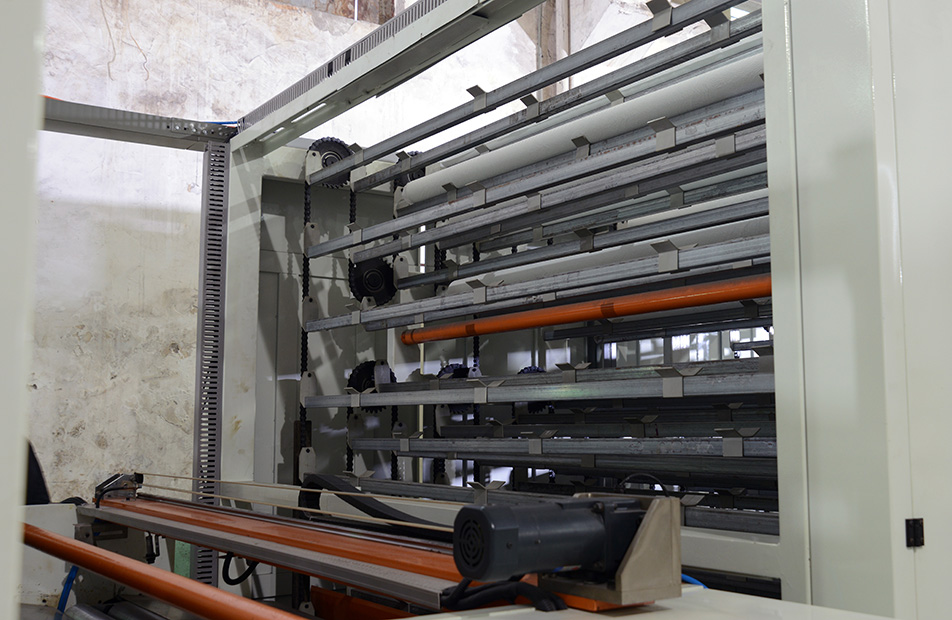

| Paper roll storage rack | |
| Equipment description | Used to store the production of paper roll from perforating &rewinding machine. |
| Paper roll length (mm) | 2100 |
| Paper roll diameter (mm) | 100-130 |
| Storage capacity( logs) | 80 |
| Equipment power(KW) | 4.4 (380V 50HZ 3 Phase) |
| Equipment weight | about 3.5 |
| Equipment size(L*W*H)(mm) | 5400*3500*2500 |
| The big saw cutting machine | |
| Paper Roll length (mm) | 2100 |
| Paper Roll diameter (mm) | φ100~φ130 (can be customized) |
| Production speed | cutting times 80~100times/ min * 2 rolls / time |
| Equipment power (KW) | 12.1（380V 50HZ） |
| Equipment weight (T) | about 3.5 |
| Equipment size (L*W*H)(mm) | 6100*1700*2500 |
