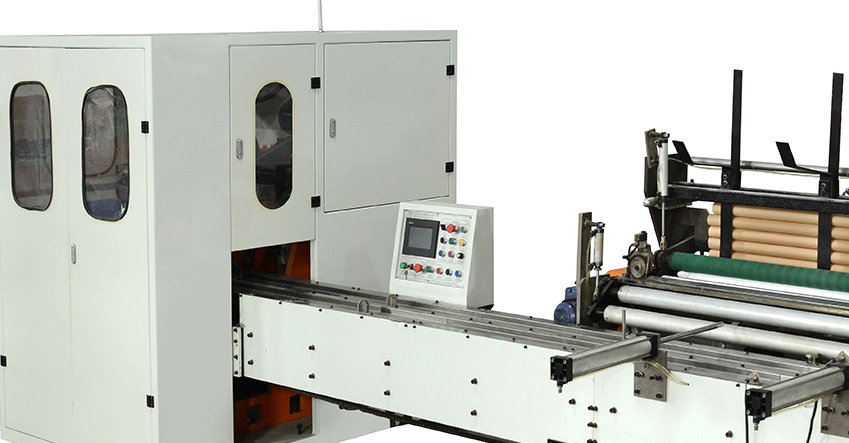

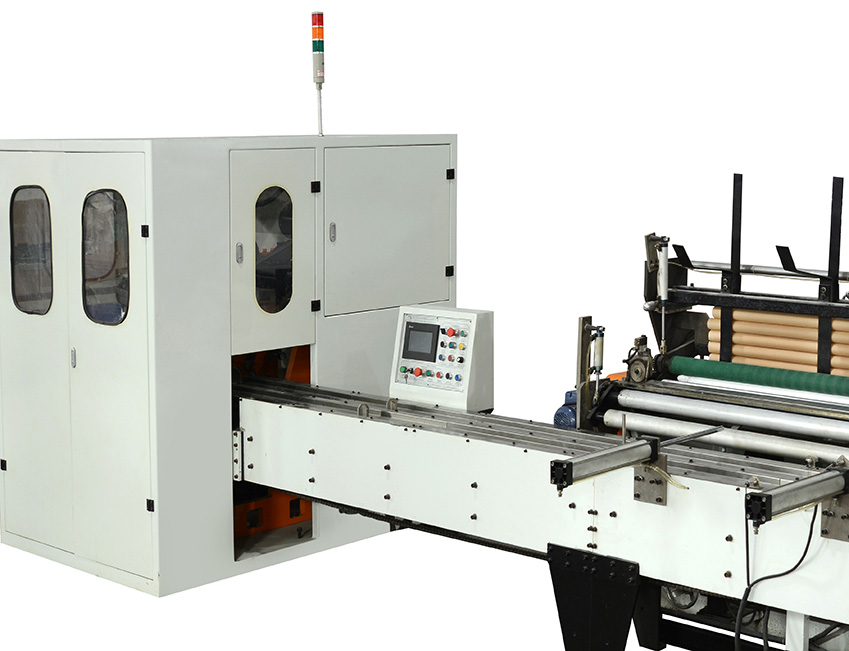

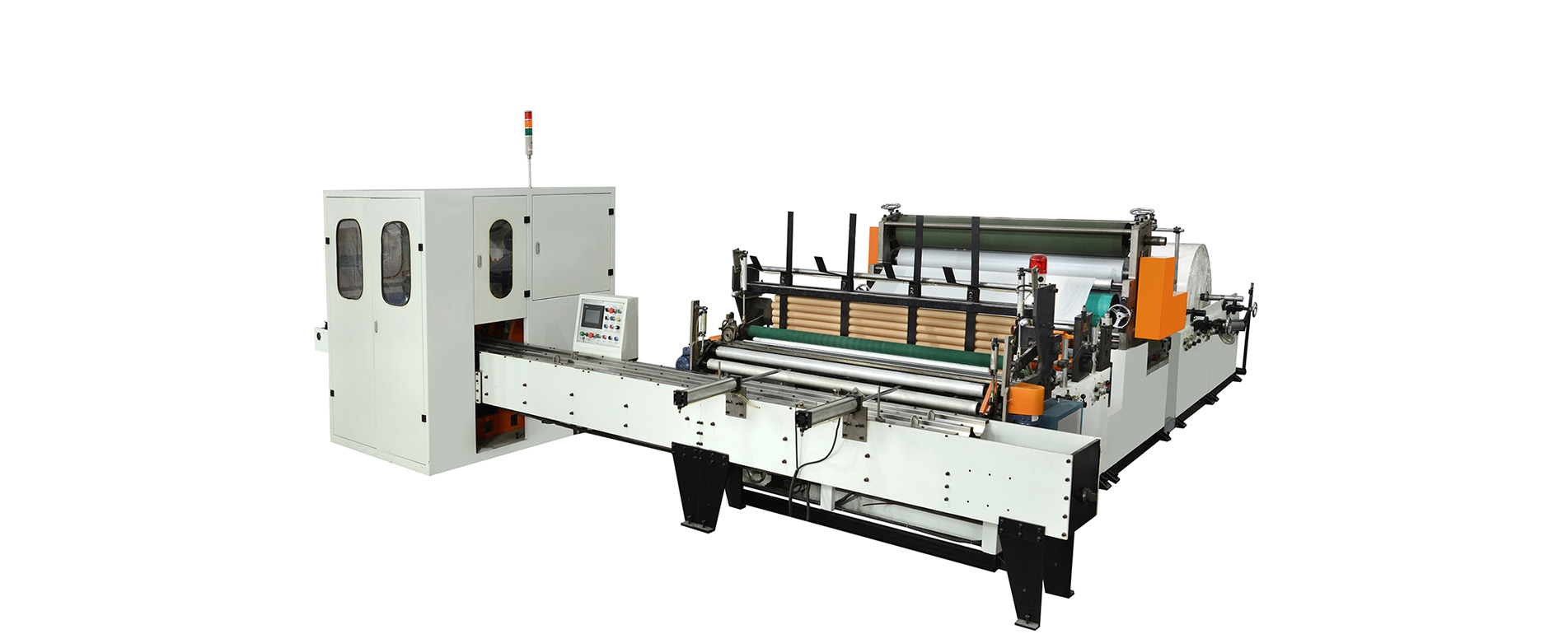

HX-1575B
Automatic embossed rewinding toilet paper roll making glue-lamination kitchen towel machine
Equipment Introduction
This equipment has been integrated with the internationally advanced PLC technology. It has variable speed adjustment and touch human-machine interface operating system. It adopts newly designed glue applicator unit which makes the gluing more uniform. It can add 1-3 colors’ water ink printing system for printing diversified fine pattern, brand which is with characters of clear and bright printing, exact overprint, high speed and stable running.
Technical Parameter
Main technical parameter for rewinding machine:
| Production speed(m/min ) | about 120-180 |
| Finished roll diameter(mm) | ≦100-130 |
| Finished roll width (mm) | toilet paper 90-120 |
| Jumbo roll paper request | double plies 13-20g/m²；single plies 20-40 g/m |
| Perforating distance(mm) | toilet paper 100-150 |
| Jumbo roll width(mm) | ≦1800 |
| Jumbo roll diameter (mm) | ≦1200 |
| Jumbo roll weight | ≦800KGS. Other weight can be customized |
| Equipment overall size(L*W*H)(mm) | 6630*3600*1900 |
| Equipment power(kw) | about 15.3 (380V 50HZ) |
| Equipment weight(T) | about 7 |
| Log length(mm) | 1500~2000 (according to customer request) |
| log diameter | φ100~φ130mm (can be customized) |
| production speed | cutting times 80~100 cut/min×2rolls |
| Equipment power(KW) | 6.77 (380V 50HZ) |
| Equipment weight(T) | about 2 |
| Equipment overall size(L * W * H)(mm) | 8500*1200*1920 |
