HX-1350B

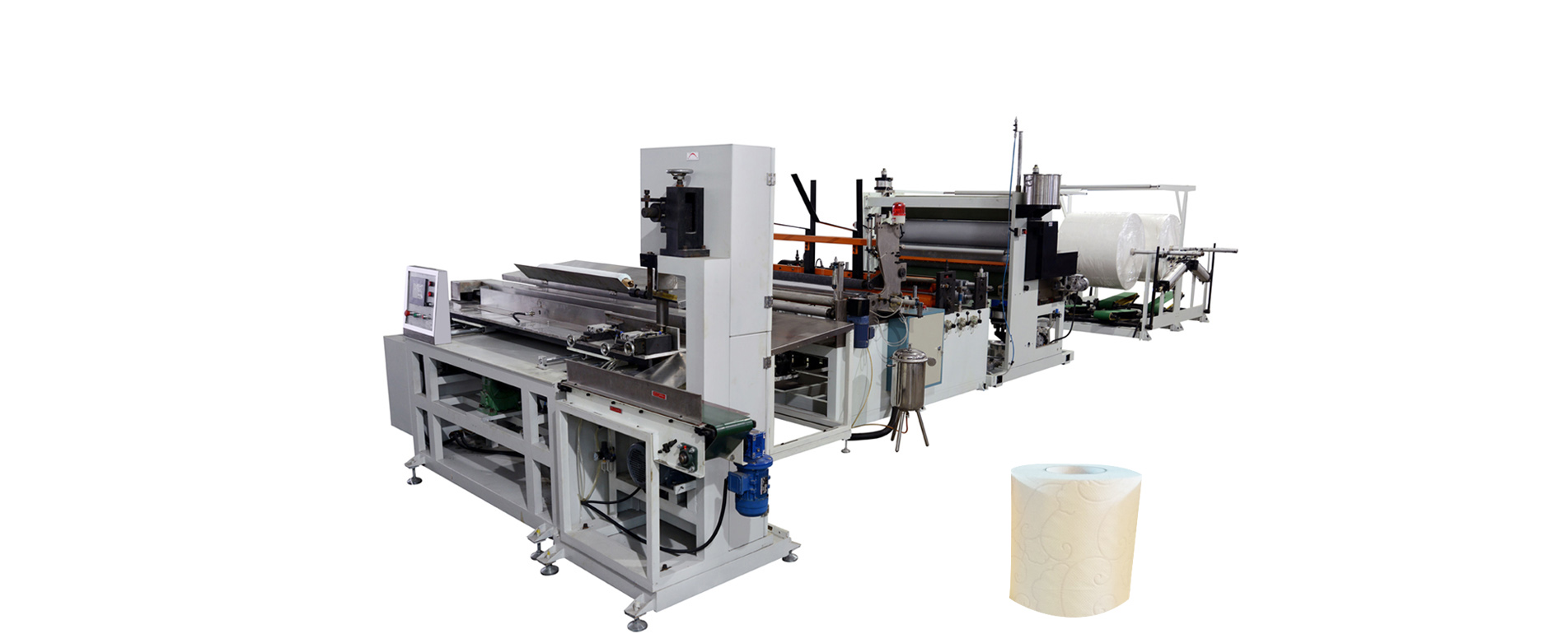

Glue lamination toilet paper and kitchen towel machine( connect with band saw machine for cutting)
Equipment Introduction
1. Adopt PLC programmable controller to control the production process, main motor frequency control.
2. Man-machine conversation, easy operation with high efficiency. Machine stop when raw paper broke.
3. Jumbo Roll Paper is pneumatically uploaded onto machine, with unwinding web tension control device.

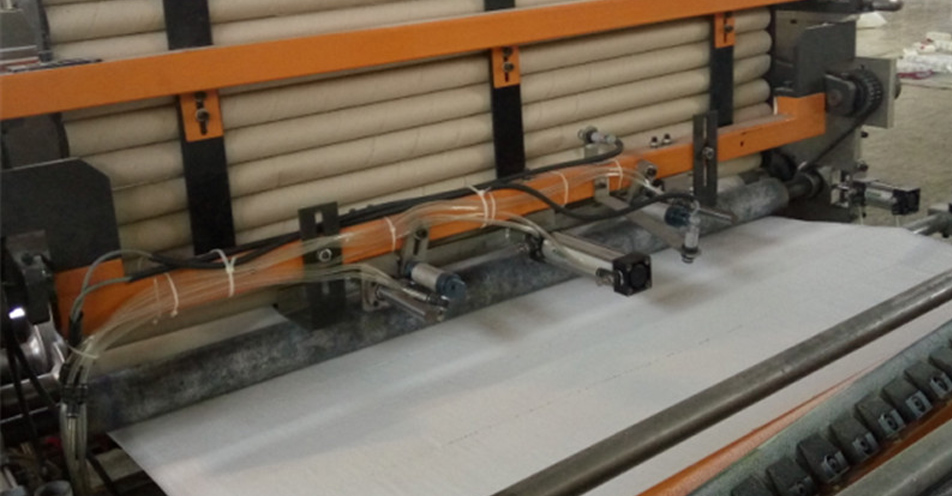

4.The rewinding process of the product is tight first and loose afterward, with its tension adjustable. Automatic changing paper roll, rewinding, tail cutting and sealing, then finished log output.
5. Bearing, electric component and synchronous belt use international famous brand.
Technical Parameter
| Production speed (m/min) | 100-180 |
| The maxi production speed for producing color gluing paper (m/min) | 120-150 |
| Jumbo roll paper width (mm) | ≤1350 |
| Jumbo roll paper diameter(mm) | ≤1500 |
| Jumbo roll inner core diameter (mm) | 76 |
| Perforating distance(mm) | 100-250 |
| Finished paper roll core diameter(mm) | Φ32～50 |
| Finished products outer diameter can be adjustable by air cylinder (mm) | 90-150 (Tightness of roll can be adjustable) |
| Machine power (KW) | 8.6（380V 50HZ） |
| Machine weight (T) | about 4 |
| Machine Overall size(L*W*H)(mm) | 5300*2250*1600 |
