HX-2000C

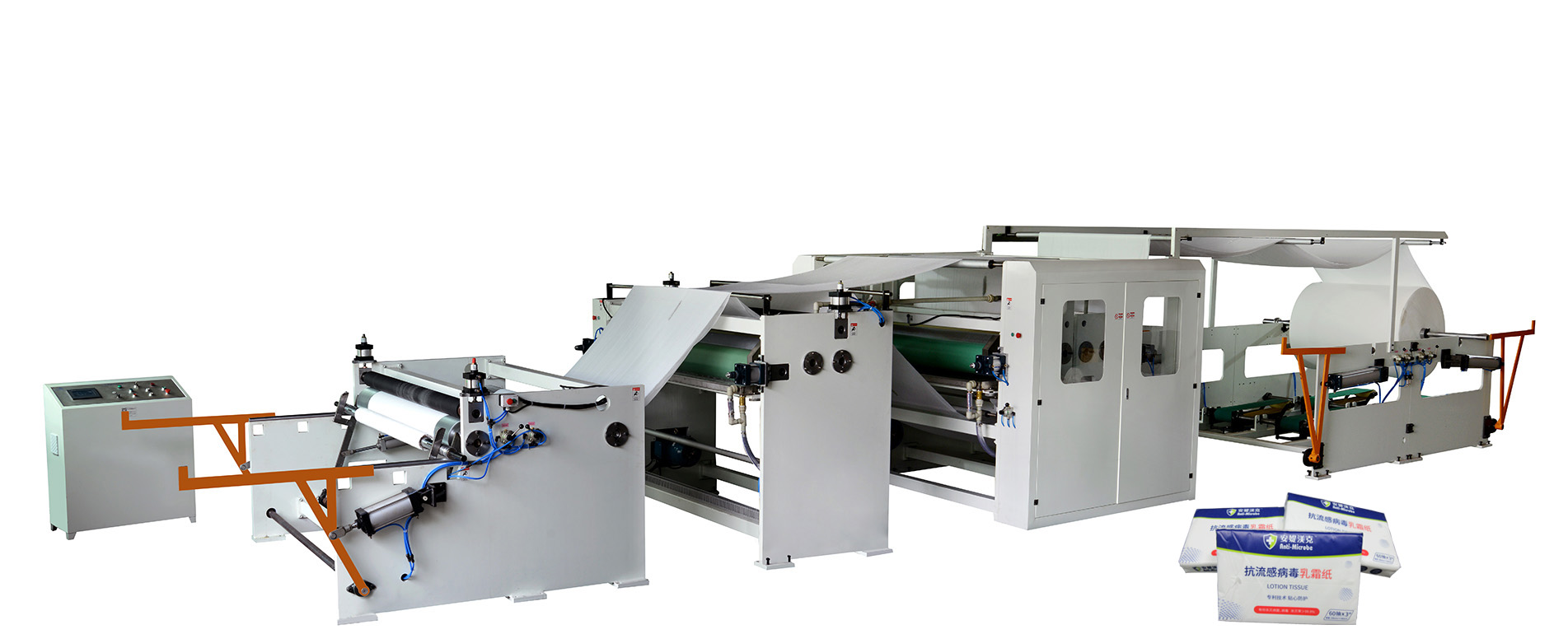

Three Layers Lotion Tissue Coating Machine
Equipment Configuration
1.Equipment features:Three-layer double-sided coating or three-layer separately coating can be selected.
2.Equipment Function: Unwinding-- Lotion Coated--Rewinding.

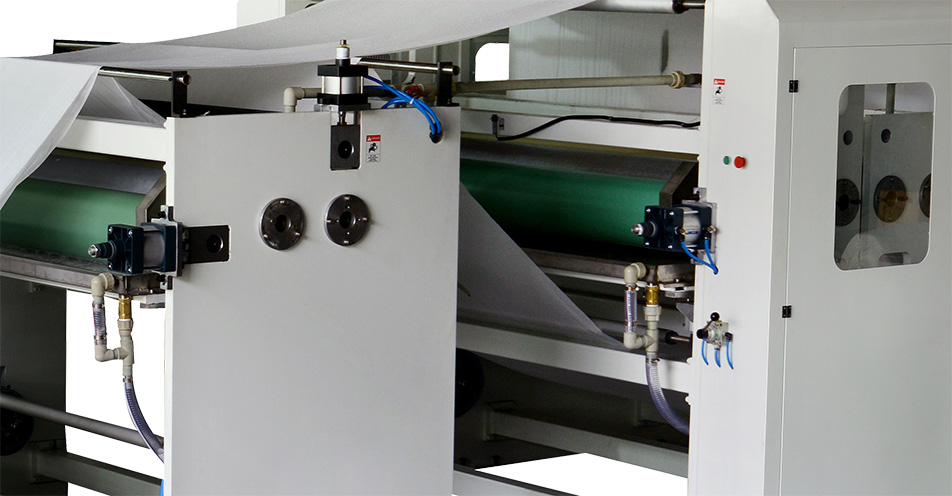

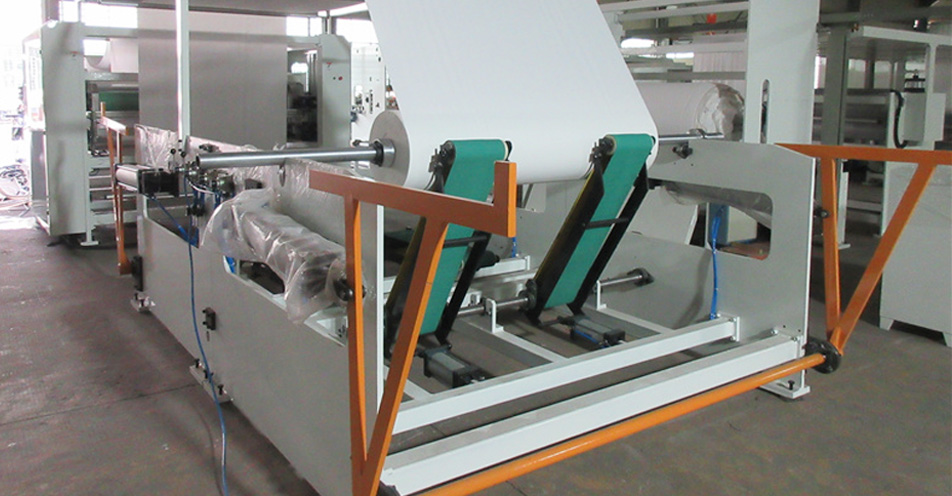

3.Equipment production process: 2 sets of jumbo roll stands(Pneumatic lifting raw paper)---3 sets of Coating system (including automatic adding cream device)---1 set of pressing and conveying device----1 paper stretch roll ----1 set of rewinding device----Pneumatic discharge unit .
4.The whole machine with wall type panel, driven by an independent motor,and the tension control can be operated on the PLC.
技术参数
| Equipment Function | Unwinding --Lotion coated---Rewinding Note: Three layers of base paper coating using separate coating, three layers of separate coating and then composite rewinding. |
| Production speed(m/min) | 200-250 (Designed speed: 300 m/min) |
| Raw paper weight (gsm) | 11.5-19 g/㎡ Three layers of base paper |
| Width of jumbo roll(mm) | ≤2000 |
| Diameter of jumbo roll(mm) | ≤1400 |
| Diameter of jumbo roll core (mm) | 76 |
| Finished product diameter(mm) | 500-1000 |
| Equipment weight (T) | about 14 |
| Equipment power (KW) |
about 17.1 KW (three-layer double-sided coating), about 21.1 KW ( three-layer separately coating, Lotion container heating 1.2kw (380V 50HZ) |
| Equipment oversize(L*W*H)(mm) | 15300*5000*2400 |
