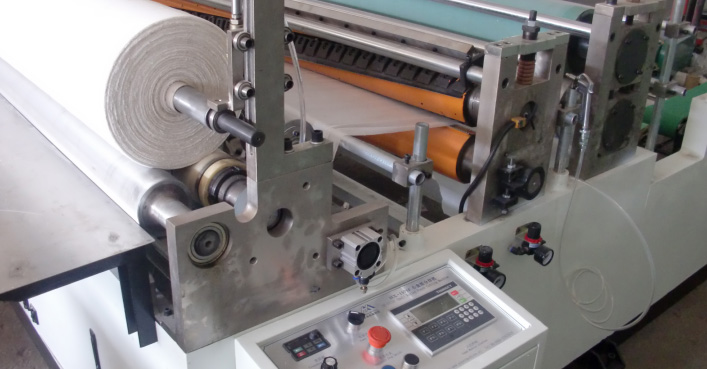

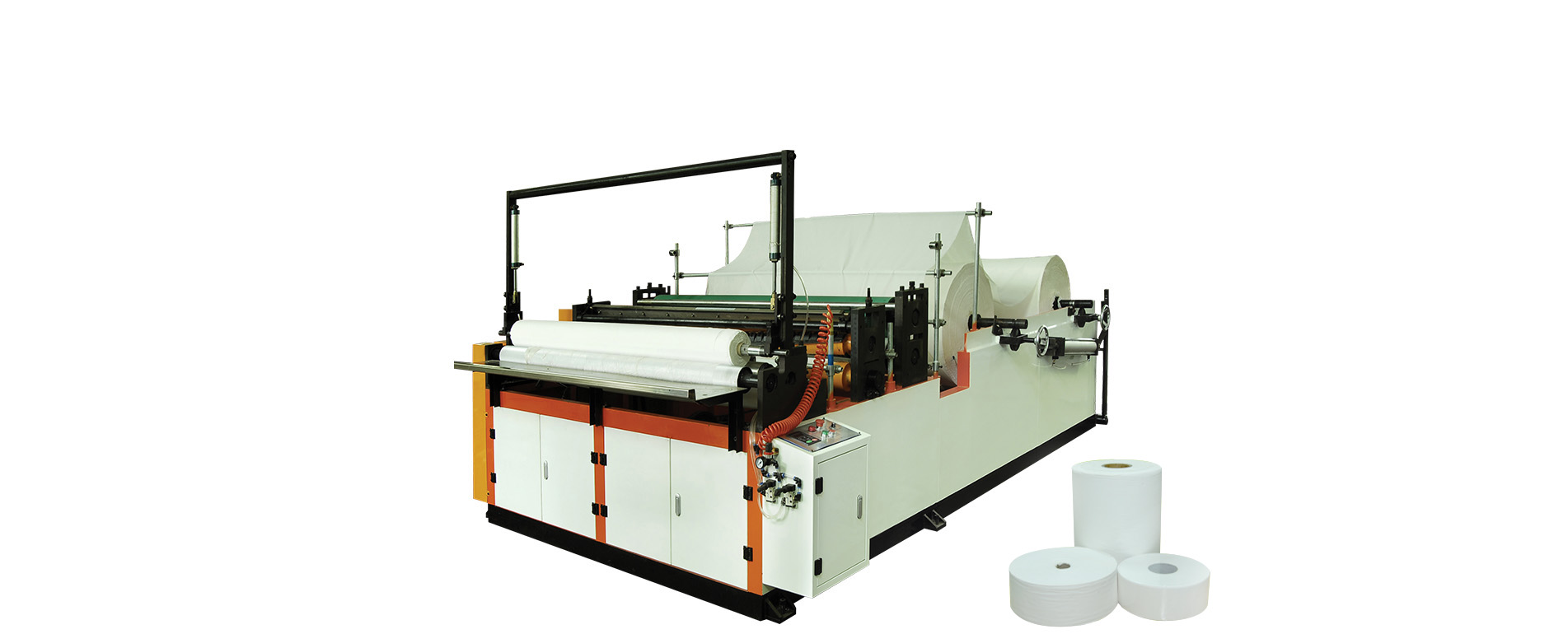

HX-1575F
Small jumbo roll bath tissue rewinding and slitting machine
Equipment Introduction
1.Small rolled paper produced by this machine are widely used in the toilet room of public places including hotels and office buildings, etc.
2.This machine is equipped with embossing, perforating and automatic cutting device.
3. The product is one-step forming. The unwinding roll of jumbo roll paper adopt flat belt for pushing.
4.Stepless speed adjustment adjust tension.

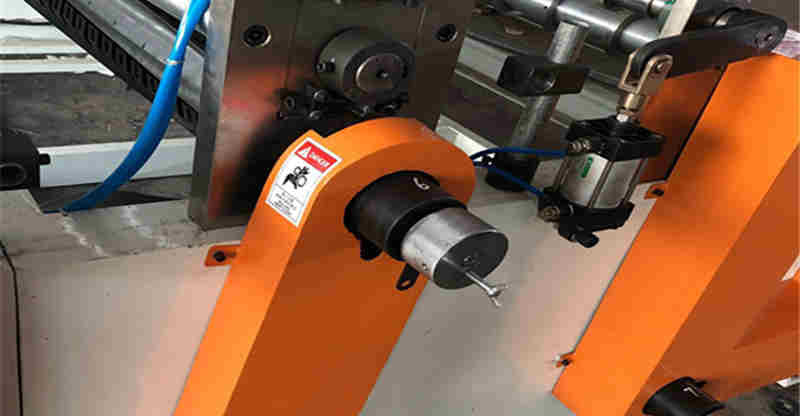

5. It adopts air swelling shaft to rewinding roll (or select to use pneumatic style to rewinding roll), the tension of rewinding roll can be adjusted.
Technical Parameter
| production speed(m/min) | 130-180 |
| rewinding diameter(mm) | maximum diameter 300 (adjustable) |
| Perforating diameter(mm) | 100-150 (adjustable) |
| Jumbo roll Diameter(mm) | 1200 |
| Equipment power | 3 KW 380V 50HZ 3 PHASE |
| Equipment Overall Size (L*W*H) (mm) | about 4000*2300*1600 |
| Equipment Weight(T) | about 2.2 |
