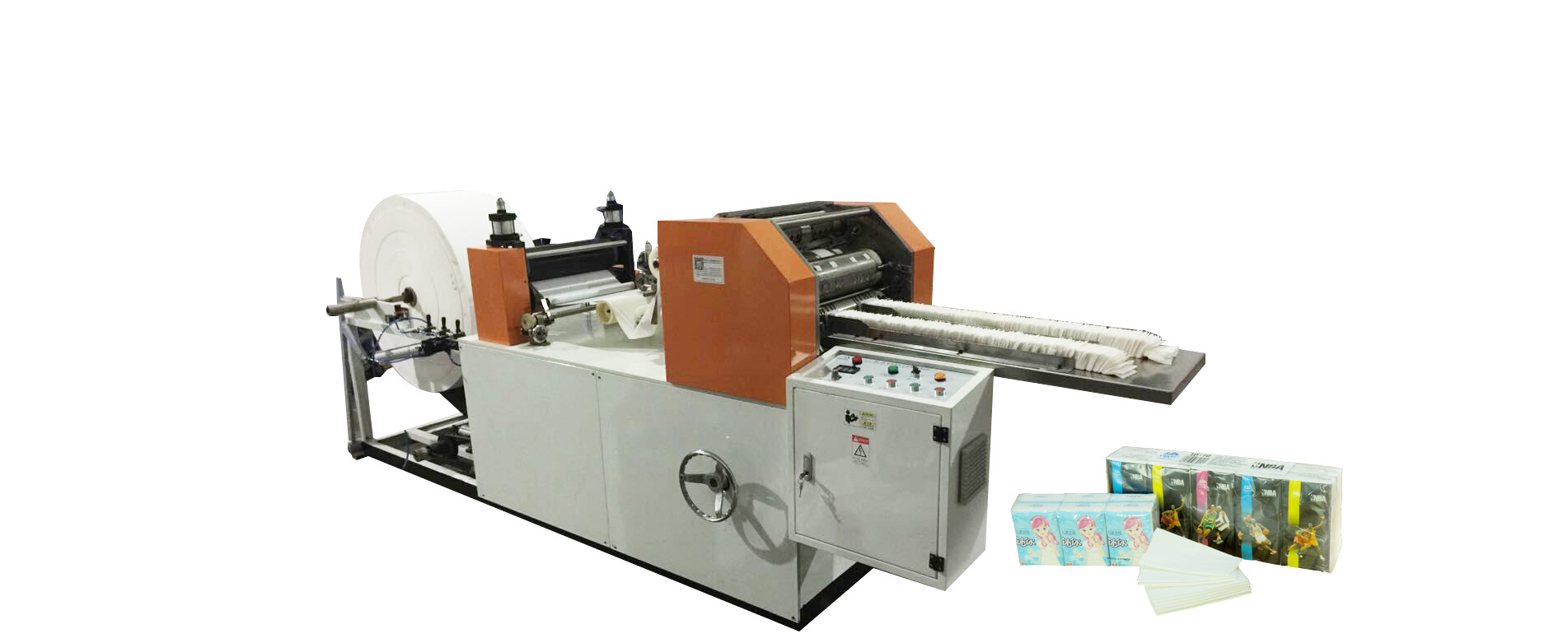

HX-210
Mini Type Facial Tissue Machine (double lines output)
Equipment Introduction
Mini style facial tissue machine adopts vacuum absorption, automatically fold the paper with high speed .This machine manufacturing accuracy is high. Frequency speed control. Movement is accurate.
1. Paper surface rolls embossing, pattern is pretty and clear.

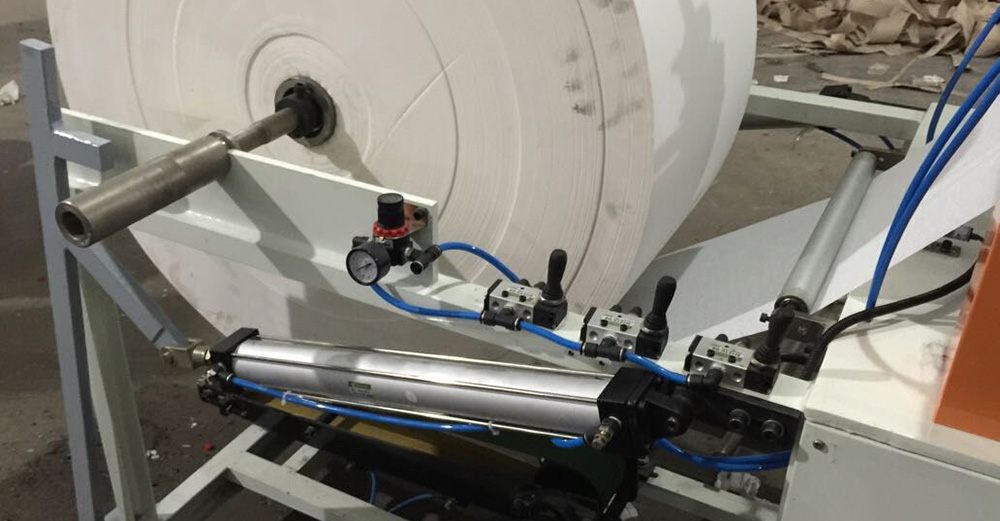

2. Roll-unwinding tension control, which is suit to different tension jumbo roll paper production.
3. Paper edge inner-fold, product appearance is elegant.
4. Spiral knife cut, cutting is tidy, easy to adjust.
5. Adopts vacuum folding style.
6. Can add one or two color printing device and glue lamination device according to user’s requirement
Technical Parameter
| Jumbo roll width(mm) | 420 |
| Jumbo roll diameter(mm) | 1200 |
| Jumbo roll specification | 14g/m²-18g/m² double plies |
| Finished product folded size(L*W)( mm) | a.75x52 (unfolded size 210x210) |
| b.105x52 (unfolded size 210x210) | |
|
Production speed(pcs/min) |
800-1000 |
| Equipment power | 3.7Kw（380V or 220V 50Hz） |
|
Equipment overall size(L*W*H)(mm) |
3600 x 770 x1400 |
| Equipment weight(T) | about 0.8 |
