HX-210-2V

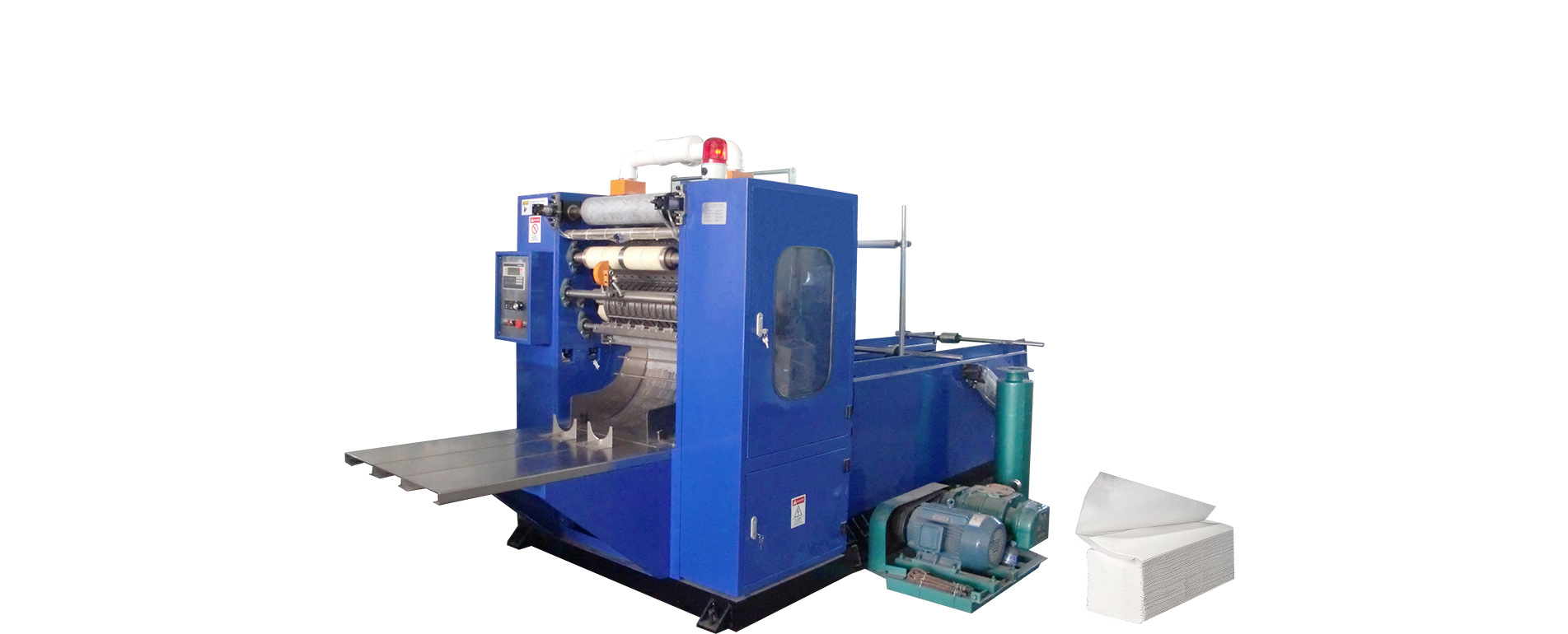

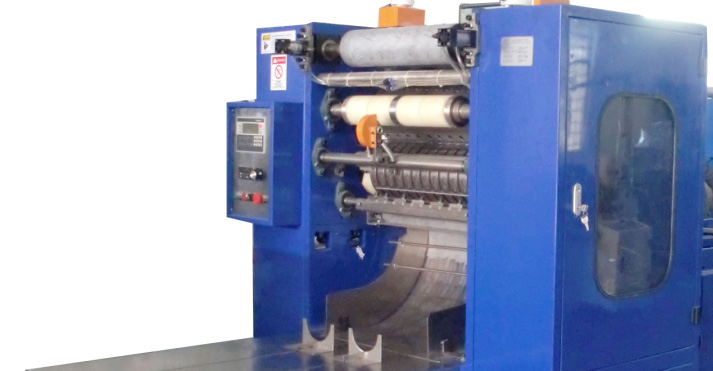

Fold hand towel tissue machine paper towel converting machine
Main Characteristic

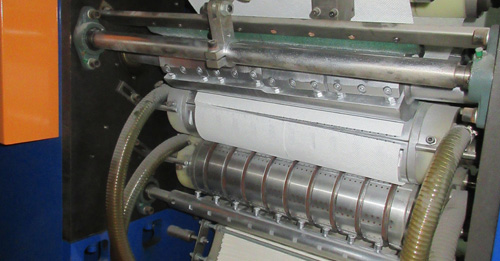

1. Steel to rubber embossing, pneumatically press. The design is available to customer's requirement.
2. Transmitted by Synchronous belt. The transmitting speed is correct, and the noise is low.
3. It cut paper pneumatically. When machine stopped, the cutting blade can separate from paper automatically, which makes it easy to pass paper through machine.
4. PLC control and electronically count. Equipped with front and back point move switch.
Technical Parameter
| Production speed (sheet/min) | 1000-1200 |
| Finished product unfolded size(mm) | 210*210 |
| Finished product folded size(mm) | 210*105±2 |
| Jumbo roll Maximum width(mm) | 420（2lines output） |
| Jumbo roll Maximum diameter(mm) | 1200 |
| Equipment power(KW) | 9 |
| Equipment overall size (L×W×H)(mm) | 4950*1300*2200 |
|
Equipment weight(T) |
1.8 |
