HX-170-400(300)

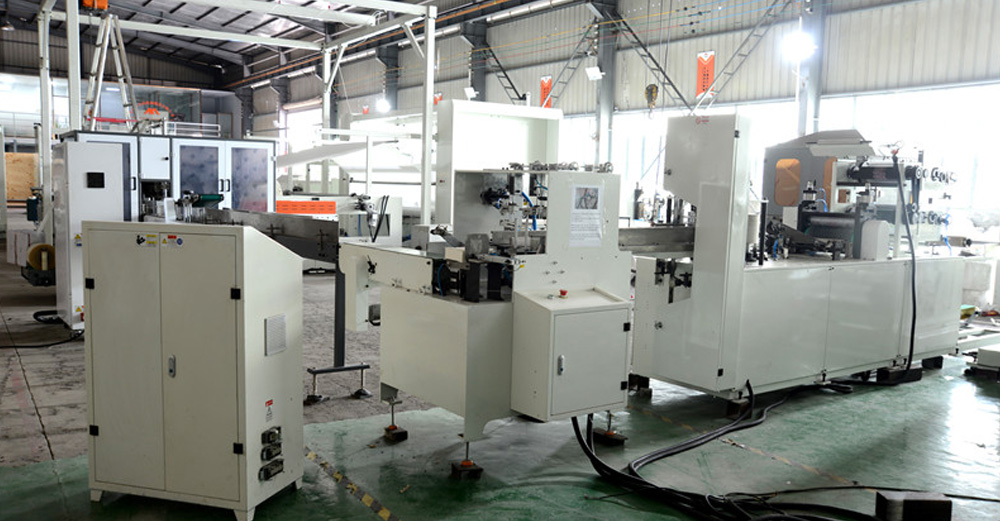

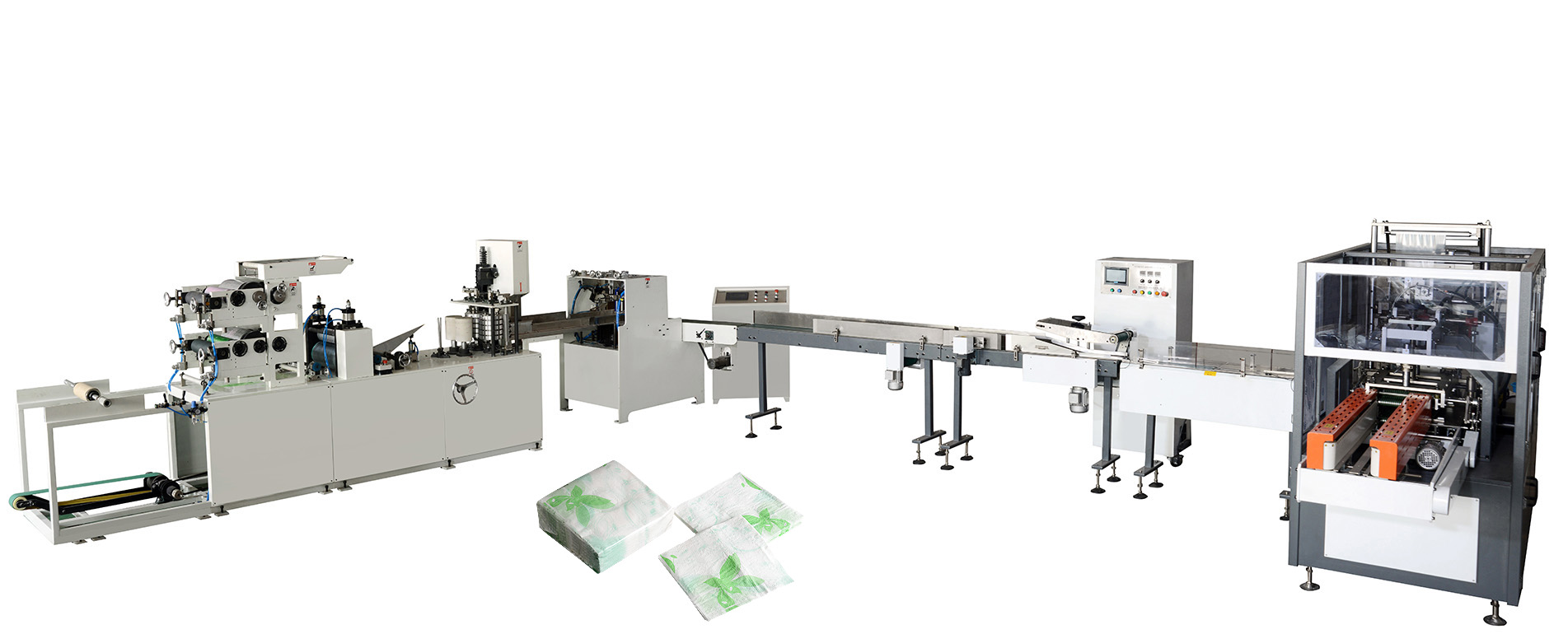

Napkin paper machine(Include napkin separator machine and the packing machine)

Video

Equipment introduction

This machine is to print, emboss and automatically fold the rolled paper which is cut well into square or rectangular Napkin Paper. Can add 1-4 colors water ink printing system for printing diversified fine pattern, brand, with characters of clear and bright printing, exact overprint, high speed and stable running, is preferred equipment for processing good quality napkin paper.
1. A variety of folded pattern can be selected, can be customized.
2. Color printing part adopts flexography printing, pattern can replace flexibly according to requirement, adopt special color printing, net lines ink vibrator.
3. Stepless speed adjustment for unwinding roll, whole machine run synchronously, production automatic counting, can set automatic counting layered output, convenient for packing.
4. Bottom embossing roller adopt Felt Roller, Wool Roller, Rubber Roller(can select 1 kind among them)  to steel roller. Embossing can be selected to equip with heating system, pattern is bright.

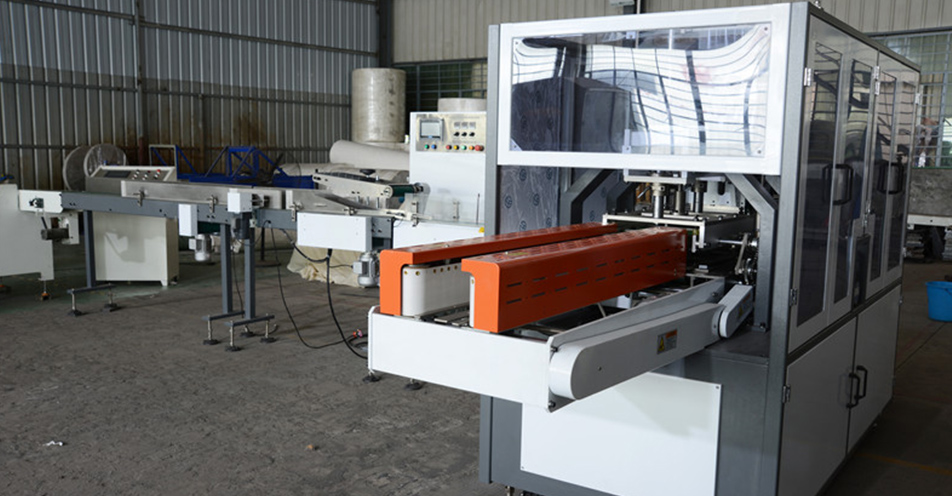

5. This machine is equipped with napkin automatic counting machine and the packing machine(customer self-purchasing or our company can help purchase)

Technical Parameter

Production speed (pcs/min) 600-800
Finished product unfolded size(mm) 300*300
Finished product folded size(mm) 150*150
Jumbo roll width(mm) ≤300
Jumbo roll diameter(mm) ≤1200
Equipment power(KW) 4.7(380V 50HZ)
Equipment weight(T) about 1.6
Equipment overall size (L×W×H)(mm) 3700 *850 *1600
